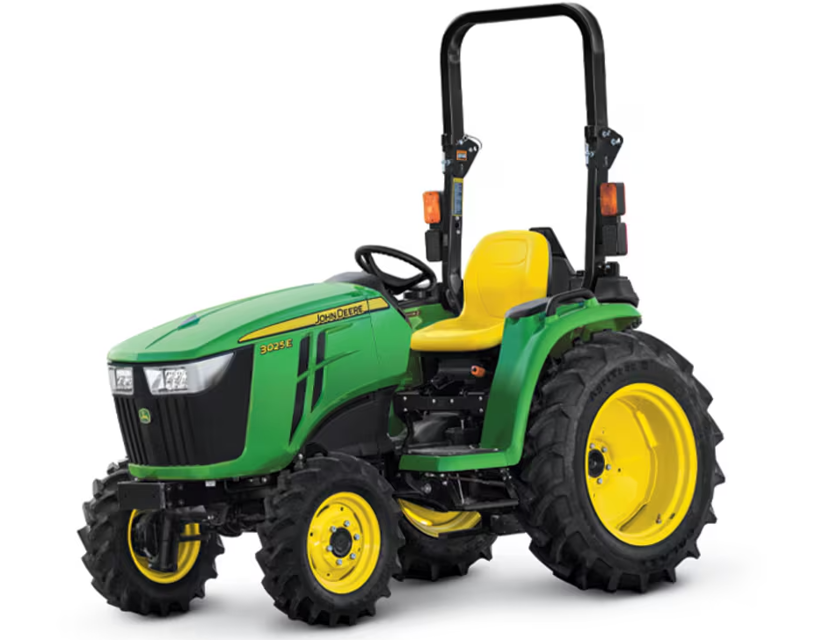

The John Deere Compact Utility Tractor 3025E is a versatile and efficient asset designed for various agricultural and landscaping tasks. With its robust performance and reliable features, this tractor is ideal for both commercial and residential applications, ensuring productivity and ease of use in any environment.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for John Deere Compact Utility Tractor 3025E

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

John Deere Compact Utility Tractor 3025E

Create an account to install this asset package.

Maintenance Plans for John Deere Compact Utility Tractor Model 3025E

Integrate maintenance plans directly into your work orders in MaintainX.

Radiator, Fuel, and Transmission Cooling Fins Cleaning

Machine parked safely and engine allowed to cool

Hood raised, side panel removed and grille slid up

Radiator screen (C) slid up out of retaining slot

Screen cleaned with compressed air, brush, or cloth

Cleaned parts with compressed air or water

Grille slid down, side panel installed and hood lowered

Run this procedure

Front Axle Thrust Bolt Torque Maintenance

Park machine safely

Raise front axle off ground to take machine weight off the front axle

Loosen nut (A)

Tighten thrust bolt (B)

Oscillate axle from stop to stop

Enter the torque reading

Tighten back nut

Lower front axle back to ground

Sign off on the Front Axle Thrust Bolt Torque Maintenance

Run this procedure

200 Hourly Maintenance

Run engine to warm the oil

Park machine safely

Place drain pan under oil drain plug (A), under side of engine

Remove drain plug

Wipe dirt from around oil filter (B)

Turn filter counterclockwise to remove

Put a light coat of clean engine oil on gasket of new filter

Install replacement oil filter by turning filter clockwise until gasket contacts filter base. Tighten additional one half turn

Install drain plug. Do not overtighten

Run this procedure

Safety Interlock System Testing

Warning: Ensure you have read the machine operator manual and are familiar with the operation of the machine before performing these safety system checks.

Perform these tests in a clear open area. Keep bystanders away.

Test the Neutral Start Switch: Sit on the operator seat, disengage PTO, move the transmission range lever to the H (high) or L (low) position, turn key switch to START position. Engine must not start.

Test the Seat Switch: Sit on the operator seat, do not depress the hydrostatic travel pedals, lock park brake, start engine, press PTO switch, raise up slightly from the operator seat. Do not dismount machine. Engine must shut down within 1 second.

Test the Rear PTO Switch: Sit on the operator seat, lock park brake, move transmission range lever to the N (neutral) position, press PTO switch to the engaged/on position, turn key to START position. Engine must not start.

Sign off on the safety interlock system testing

Run this procedure

Daily Maintenance

Test safety system

Check engine oil level

Park the machine safely

Remove dipstick (A), at the right side of the engine. Wipe with a clean cloth

Install dipstick

Remove dipstick

Check oil level on dipstick. Oil level should be between levels (B) and (C) on dipstick

If oil level is low: Raise hood, Remove right side panel, Remove oil fill cap (D), Add recommended engine oil until level is within operating range on dipstick. Do not overfill, Install dipstick

If oil is above LEVEL (B) on dipstick, drain to the proper level

Run this procedure
