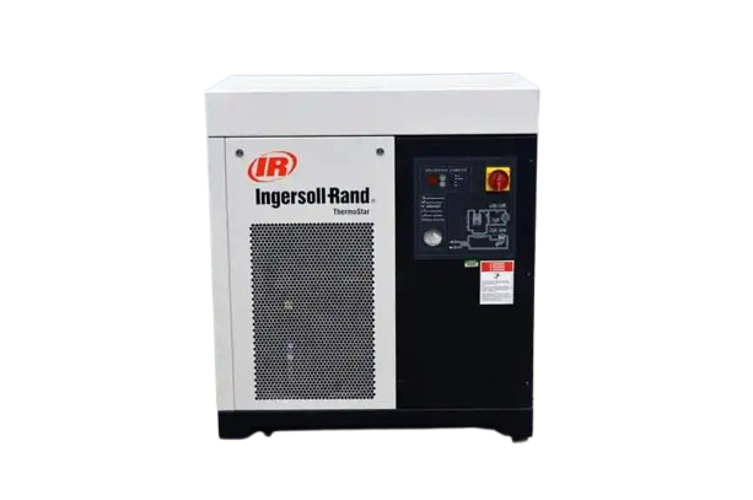

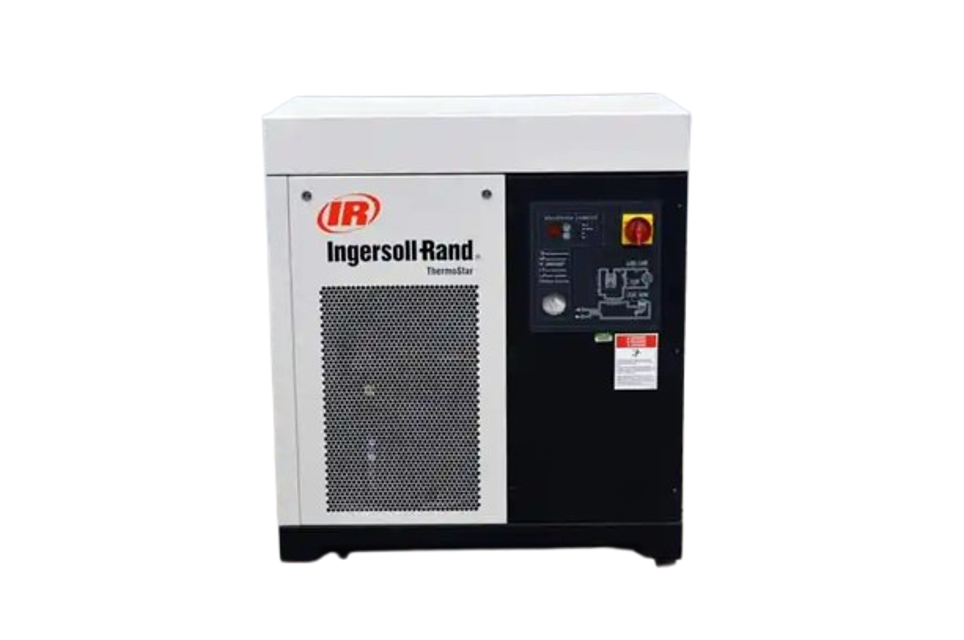

Ingersoll Rand Thermo Star Refrigarated Air Dryer TS700
Need answers fast?
Explore the manual using AI.
The Ingersoll Rand Thermo Star Refrigerated Air Dryer TS700 is a high-performance air drying solution designed to efficiently remove moisture from compressed air systems. This model ensures optimal performance and reliability, making it an essential component for industrial applications requiring dry air.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Ingersoll Rand Thermo Star Refrigarated Air Dryer TS700
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Ingersoll Rand Thermo Star Refrigarated Air Dryer TS700
Create an account to install this asset package.
Maintenance Plans for Ingersoll Rand Thermo Star Refrigarated Air Dryer Model TS700
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Air Dryer Condensate Drain
For optimum performance from your dryer follow the periodic maintenance schedule described below.
Completely disassemble the drain and clean all its components.
Clean the filters, solenoid valves and condensate drain.
Check the electrical circuit.
Sign off on the maintenance
1 Monthly Compressor Maintenance
For optimum performance from your dryer follow the periodic maintenance schedule described below.
Enter the compressor head temperature when running
Is the compressor head temperature between 59°F (15°C) and 131°F (55°C)?
If the temperature is not within the specified range, consult section 7, troubleshooting.
Sign off on the compressor maintenance
4 Monthly Air Dryer Maintenance
• For optimum performance from your dryer follow the periodic maintenance schedule described below.
1. Condenser
• Remove any dust from the condenser fins.
2. Compressor
• Make sure compressor power consumption complies with data plate specifications.;
1 Weekly Condensate Drain
Warning: Follow the periodic maintenance schedule for optimum performance.
Does the condensate drain correctly?
If necessary, perform the following tasks:
Disassemble and clean the filters
Disassemble and clean the solenoid valves
Disassemble and clean the condensate drain
Check the electrical circuit
Sign off on the weekly condensate drain maintenance
Parts for Ingersoll Rand Thermo Star Refrigarated Air Dryer TS700
Access the parts list for your equipment in MaintainX.
Rotalock, Large
38027587
Insulation
38027397
Front Panel
38027058
Hot Gas Valve
38003935
High Pressure Switch
89240857
Rotalock, Large
38027587
Insulation
38027397
Front Panel
38027058
Hot Gas Valve
38003935
High Pressure Switch
89240857
Rotalock, Large
38027587
Insulation
38027397
Front Panel
38027058
Hot Gas Valve
38003935
High Pressure Switch
89240857
