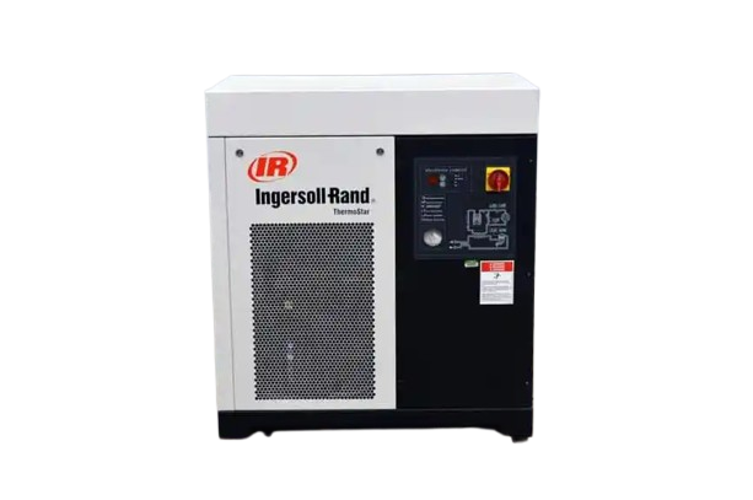

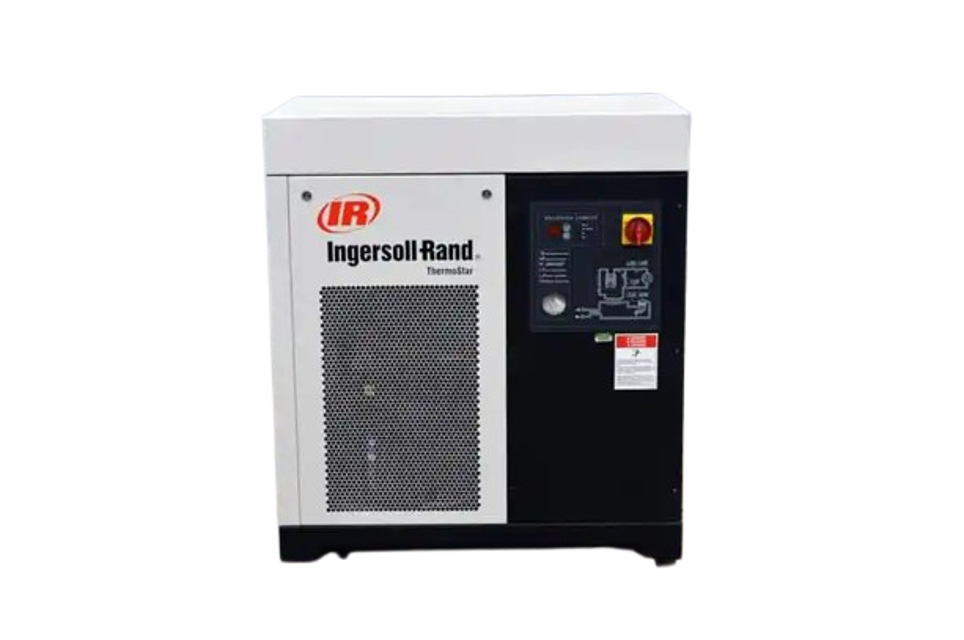

Ingersoll Rand Thermo Star Refrigarated Air Dryer TS250

For optimum performance from your dryer follow the periodic maintenance schedule described below.

Enter the compressor head temperature when running

Is the compressor head temperature between 59°F (15°C) and 131°F (55°C)?

If this is not the case, consult section 7, troubleshooting.

Sign off on the compressor maintenance

• For optimum performance from your dryer follow the periodic maintenance schedule described below.

• Remove any dust from the condenser fins.

• Make sure compressor power consumption complies with data plate specifications.;

Warning: Follow the periodic maintenance schedule for optimum performance.

Does the condensate drain correctly?

If necessary, perform the following tasks:

Disassemble and clean the filters

Disassemble and clean the solenoid valves

Disassemble and clean the condensate drain

Is the electrical circuit in good condition?

Sign off on the weekly condensate drain maintenance

For optimum performance from your dryer follow the periodic maintenance schedule described below.

Completely disassemble the drain and clean all its components.

Clean the filters, solenoid valves and condensate drain.
