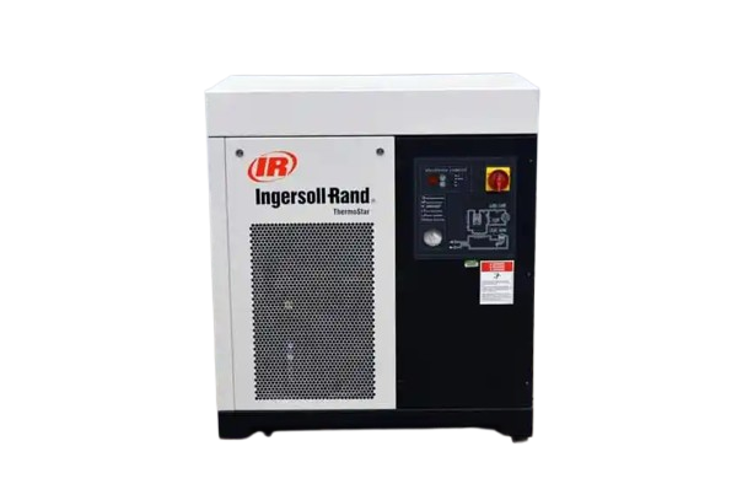

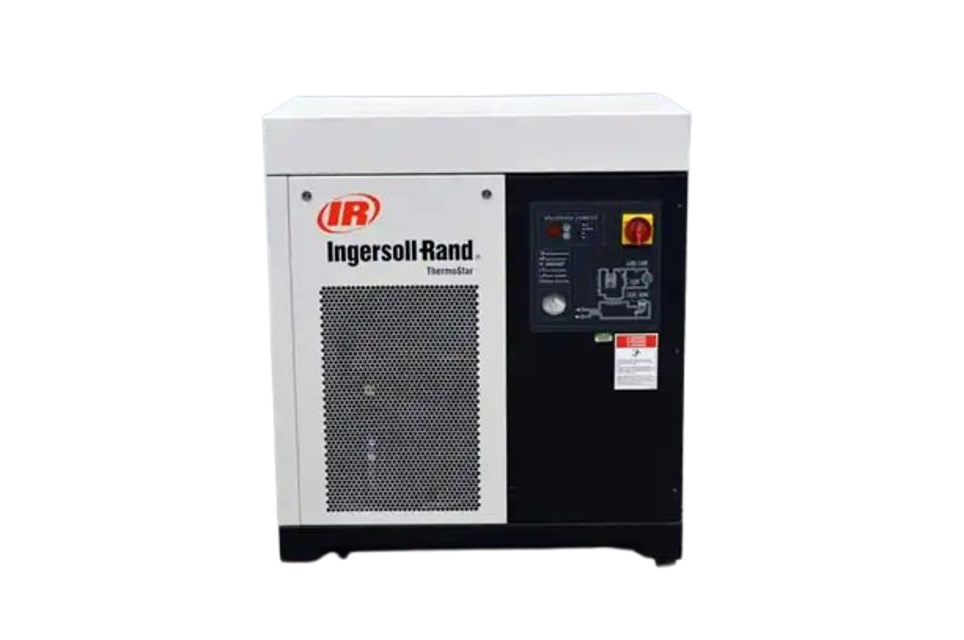

Ingersoll Rand Thermo Star Refrigarated Air Dryer TS1400

For optimum performance from your dryer follow the periodic maintenance schedule described below.

Completely disassemble the drain and clean all its components.

Clean the filters, solenoid valves and condensate drain.

For optimum performance from your dryer follow the periodic maintenance schedule described below.

Make sure the condensate drains correctly.

If necessary, disassemble and clean the filters, solenoid valves and condensate drain and check the electrical circuit.

Disassemble and clean the filters

Disassemble and clean the solenoid valves

Disassemble and clean the condensate drain

Sign off on the weekly condensate drain maintenance

For optimum performance from your dryer follow the periodic maintenance schedule described below.

Enter the compressor head temperature when running

Is the compressor head temperature between 59°F (15°C) and 131°F (55°C)?

If the temperature is not within the specified range, consult section 7, troubleshooting.

Sign off on the compressor maintenance

• For optimum performance from your dryer follow the periodic maintenance schedule described below.

• Remove any dust from the condenser fins.

• Make sure compressor power consumption complies with data plate specifications.;
