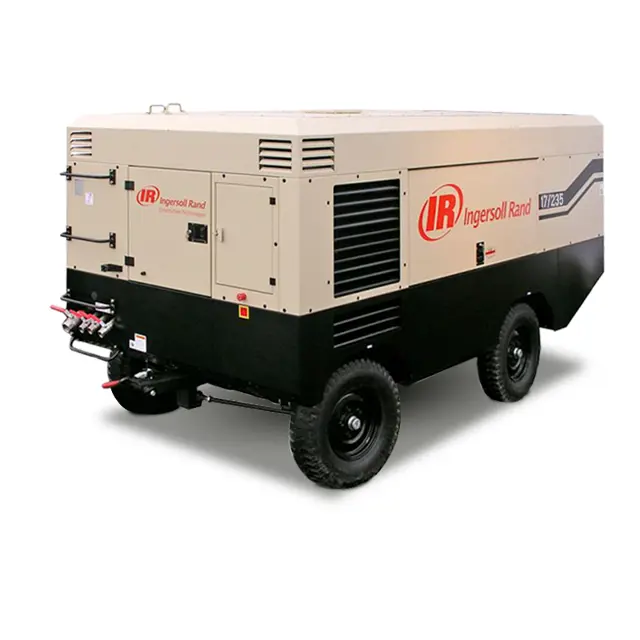

Ingersoll Rand Mobile Compressor 9/230

Create an account to install this asset package.

Maintenance Plans for Ingersoll Rand Mobile Compressor Model 9/230

Integrate maintenance plans directly into your work orders in MaintainX.

6 Monthly / 1000 Hourly Scavenge Line Inspection

Warning: This inspection requires trained personnel with PPE!

Scavenge line runs from the combined orifice/drop tube in the separator tank to the orifice fitting located in the airend

Orifice, check valve and hoses examined

Any oil carryover into the discharge air?

If there is oil carryover, report the issue to the maintenance team and stop the procedure

Scavenge line and tube clear of any obstruction

Sign off on the scavenge line inspection

Run this procedure

1 Daily Mobile Compressor Maintenance

• Check Compressor Oil Level

• Check Engine Oil Level • Check Radiator Coolant Level • Check Gauges/Lamps • Check Air Cleaner Service Indicators • Check Fuel Tank (Fill at end of day) • Check Fuel/Water Separator Drain • Check Oil Leaks • Check Fuel Leaks • Check Drain Water From Fuel Filters • Check Coolant Leaks • Check Radiator Filler Cap

• Check Lights (running, brake, & turn)

• Check Pintle Eye Bolts

• Check Brakes

• Test Emergency stop

• Check Fasteners

• Check Lubricator

Run this procedure

3 Monthly Protective Shutdown System Test

Refer to the Wedge diagnostic display codes table for a listing of shutdown conditions.

Low engine fuel level switch.

At three month intervals, test the low engine fuel level switch circuit as follows:

Start the machine. Note: Do not press the load button.

Disconnect the switch, the machine should shutdown.

Re–connect the switch.

At twelve month intervals, test the low engine fuel level switch by removing and operating the float manually

CAUTION: Never remove or replace switches when the machine is running.

Sign off on the 3 Monthly Protective Shutdown System Test

Run this procedure

3 Monthly / 3000 Hourly Mobile Compressor Maintenance

Maintenance Tasks

Sign off on the maintenance tasks

Run this procedure

3 Monthly / 500 Hourly Compressor Oil Filter Element Replacement

WARNING: Do not remove the filter(s) without first making sure that the machine is stopped and the system has been completely relieved of all air pressure.

1. Removal

• Clean the exterior of the filter housing and remove the spin–on element by turning it in a counter–clockwise direction.

2. Inspection

• Examine the filter element.

CAUTION: If there is any indication of the formation of varnishes, shellacs or lacquers on the filter element, it is a warning that the compressor lubricating and cooling oil has deteriorated and that it should be changed immediately. Refer to LUBRICATION later in this section.

3. Reassembly

• Clean the filter gasket contact area and install the new element by screwing in a clockwise direction until the gasket makes contact with the filter housing. Tighten a further 1/2 to 3/4 of a revolution.

CAUTION: Start the machine and check for leakage before the machine is put back into service.;

Run this procedure
