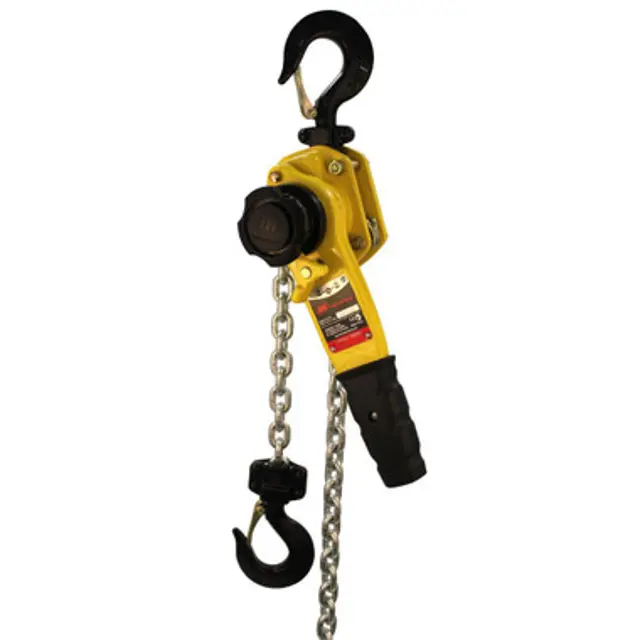

Ingersoll Rand Lever Chain Hoist KL100

- On hoists in continuous service, frequent inspection should be made at the beginning of each shift. In addition, visual inspections should be conducted during regular service for any damage or evidence of malfunction.

• Check for visual signs or abnormal noises which could indicate a potential problem.

• Do not operate a hoist unless the chain feeds through the hoist and hook block smoothly.

• Listen for "clicking" , binding or malfunctioning. The clicking sound of the pawl on the ratchet gear is normal when a load is being raised. If chain binds, jumps, or is excessively noisy, clean and lubricate the chain. If problem persists, the chain and load sheave may have to be replaced.

• Do not operate the hoist until all problems have been corrected.

• Check for wear or damage, increased throat width, bent shank or twisting of the hook.

• Check hooks swivel freely. If hook latch snaps past tip of hook, the hook is sprung and must be replaced.

Depending on working conditions these inspections can change: Normal – Monthly, Heavy - Weekly, Severe - Daily

All functional operating mechanisms for maladjustment interfering with proper operation.

Hooks and latches for deformation, chemical damage, cracks, and wear.

Load Chain, per guidance given in manual.

Load Chain reeving for compliance with the recommendations of the hoist manufacturer or a qualified person.

Sign off on the daily lever chain hoist inspection

WARNING! Failure to maintain clean and well lubricated load chain may result in chain failure causing injury, death or substantial property damage.

Lubricate each link of the load chain weekly, or more frequently, depending on severity of service. Apply new lubricant over existing layer.

In severe applications or corrosive environments, lubricate more frequently than normal.

Lubricate hook and hook latch pivot points with the same lubricant used on the load chain.

To remove rust or abrasive dust build-up, clean chain with acid free solvent. After cleaning, lubricate the chain.

Use Ingersoll Rand LUBRI-LINK-GREEN® or an ISO VG220 to 320 (SAE 50W to 90 EP) oil.

Sign off on the weekly lever chain hoist lubrication
