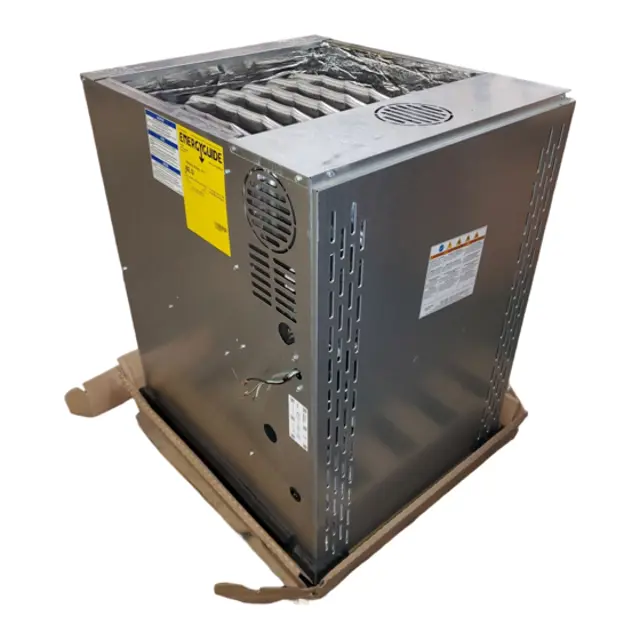

Ingersoll Rand Gas Furnace A801X060BM4SAA

Need answers fast?
Explore the manual using AI.

Ingersoll Rand Gas Furnace A801X060BM4SAA
Ingersoll Rand Gas Furnace A801X060BM4SAA

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Ingersoll Rand Gas Furnace A801X060BM4SAA

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Ingersoll Rand Gas Furnace A801X060BM4SAA

Ingersoll Rand Gas Furnace A801X060BM4SAA

Create an account to install this asset package.

Maintenance Plans for Ingersoll Rand Gas Furnace Model A801X060BM4SAA

Integrate maintenance plans directly into your work orders in MaintainX.

1 Yearly Gas Furnace Maintenance

Check mark

1. GENERAL INSPECTION

Check mark

a. All flue product carrying areas external to the Furnace (i.e. chimney, vent connector) are clear and free of obstruction. A vent screen in the end of the Vent (flue) Pipe must be inspected for blockage annually, if applicable.

Check mark

b. The vent connector is in place, slopes upward and is physically sound without holes or excessive corrosion.

Check mark

c. The return air duct connection(s) is physically sound, is sealed to the Furnace and terminates outside the space containing the Furnace.

Check mark

d. The physical support of the Furnace should be sound without sagging, cracks, gaps, etc., around the base so as to provide a seal between the support and the base.

Check mark

2. BLOWERS – The Blower size and speed determine the air volume delivered by the Furnace. The Blower motor bearings are factory lubricated and under normal operating conditions do not require servicing. Annual cleaning of the Blower wheel and housing is recommended for maximum air output, and this must be performed only by a qualified servicer or service agency.

Check mark

3. IGNITER – This unit has a special hot surface direct ignition device that automatically lights the burners. Please note that it is very fragile and should be handled with care. ! CAUTION Do NOT touch igniter. It is extremely hot.

Check mark

4. BURNER – Gas burners do not normally require scheduled servicing, however, accumulation of foreign material may cause a yellowing flame or delayed ignition. Either condition indicates that a service call is required.

Check mark

For best operation, burners must be cleaned annually using brushes and vacuum cleaner. Turn off gas and electric power supply. To clean burners, remove burner bottom plate (2 screws) and bottom burner bracket (2 screws). Twist burner towards slot, lift, and push forward away from orifice. Remove burners.

Run this procedureArrow right

1 Monthly Gas Furnace Maintenance

Check mark

Filters cleaned or replaced with high velocity filters?

Check mark

Note: Filters should be cleaned or replaced more frequently during high use times of the year such as midsummer or midwinter.

Check mark

Cooling coil condensate drain checked and cleaned?

Check mark

Warning: If condensate cannot drain freely, water damage could occur.

Check mark

Sign off on the monthly gas furnace maintenance
