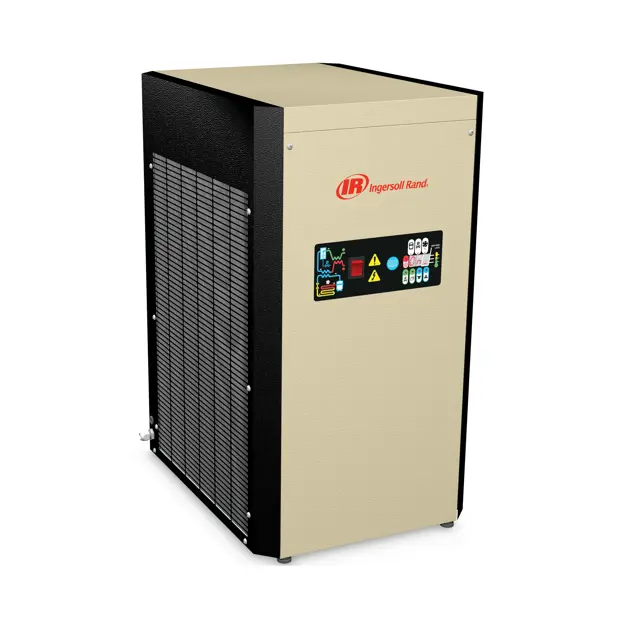

Ingersoll Rand Air Dryer D3000IN

Attention! Perform pressure test with inert gases only (helium, nitrogen).

Prefilter cleaned to remove any possible dirt on the inner filtering element.

Perform the following after stopping the compressed air flow by closing the intake and outtake valves.

Intake and outtake valves closed.

Sign off on the prefilter cleaning

1. Disconnect Dryer from electrical supply and depressurize to 0 bar.

2. Unscrew and remove the electrical connector from the service unit.

3. Unscrew 4 screws that holds the unit.

4. Remove the Service Unit from the drain.

7. Screw four screws into housing.

8. Connect the electrical connector.

9. Connect the dryer to power supply.

Attention! Perform pressure test with inert gases only (helium, nitrogen).

• Isolate the machine before performing the following.

• According to the room temperature quality and when summertime begins, clean the condenser to remove possible scales or deposits the might decrease its performance.

• Check that the compressor power consumption values fall within the range detailed on the machine plate.;

Attention! Perform pressure test with inert gases only (helium, nitrogen).

1. Check visually if the condensate is properly drained.

• Close the ball valve located on the filter/stop installed at the drain trap inlet.

• Depressurize the trap by pushing the button on the control panel.

• Unscrew the plug in the end of the filter/stop to access the filter screen (F) and clean it with a compressed air jet.

• Reassemble and open filter/stop valve.;
