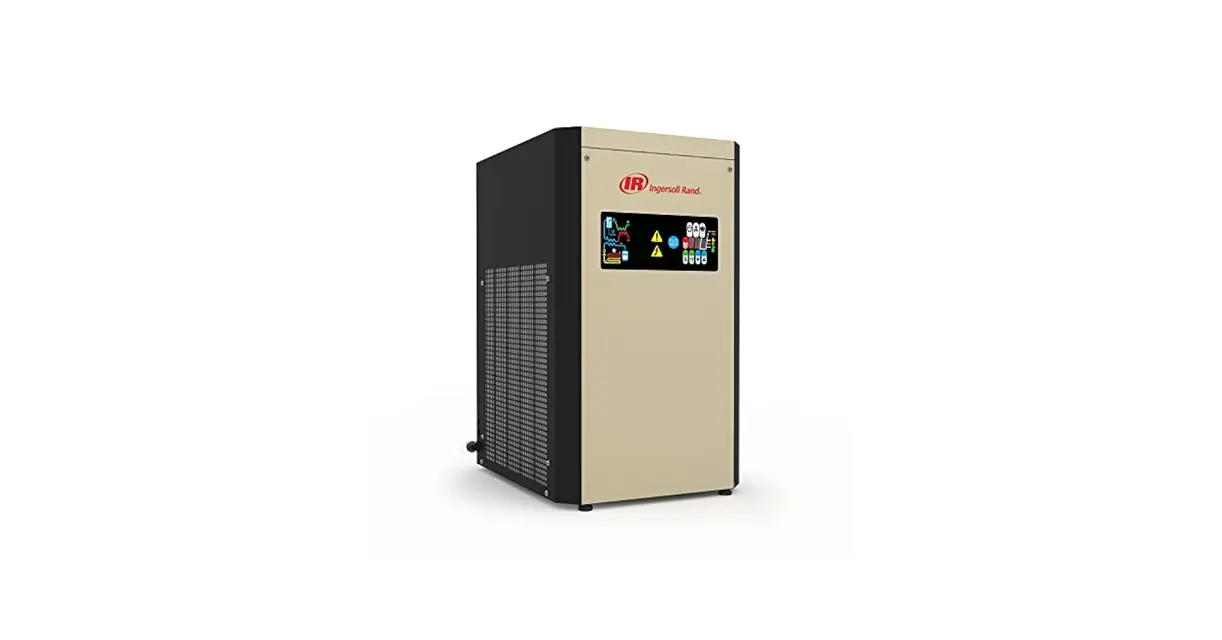

Ingersoll Rand Air Dryer D170IT

Attention! Perform pressure test with inert gases only (helium, nitrogen).

Before attempting any maintenance operation, make sure that:

No parts of the system are under pressure?

No parts of the system are electrically powered?

Check if the flexible tube used for condensate drainage is damaged

Check if all connecting pipes are properly tightened and fixed

At the end of the above mentioned operations, check if the dryer is working properly

Sign off on the air dryer maintenance

Attention! Perform pressure test with inert gases only (helium, nitrogen).

Before attempting any maintenance operation, make sure that:

No parts of the system are under pressure.

No parts of the system are electrically powered.

Clean the condenser with compressed air, taking care not to damage the condenser fins.

At the end of the above mentioned operations, check if the dryer is working properly.

Check the condition of any filters installed with and inside the dryer. Replace elements as needed.

Refer to the 'Filters for Compressed Air' manual for correct servicing procedures.

Sign off on the air dryer maintenance

Attention! Perform pressure test with inert gases only (helium, nitrogen).

Before attempting any maintenance operation, make sure that:

No parts of the system are under pressure.

No parts of the system are electrically powered.

Verify the temperature on the control panel display

Visually check if the condensate is drained regularly.

Sign off on the air dryer check
