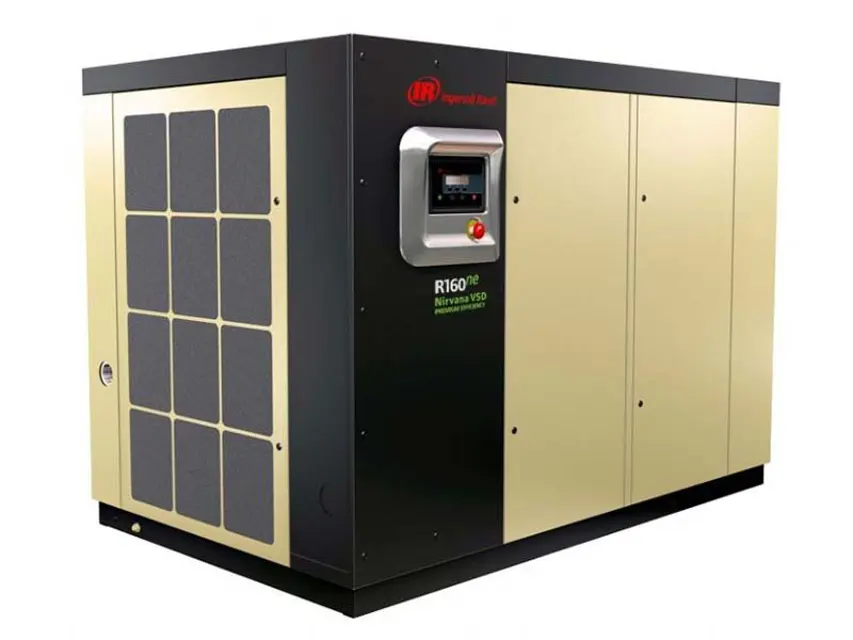

Ingersoll Rand Air Compressor R90IU-100

Check the cooler(s) for build up of foreign matter

Cleaned the cooler(s) if necessary?

On water cooled and sea water cooled models, check the water input line strainer for build up of foreign matter

Cleaned the water input line strainer if necessary?

NOTE: On some sea water cooled models the oil cooler and after cooler are fitted with sacrificial zinc anodes (pencils) that are located in the end bonnets of the coolers. These sacrificial zinc anodes should be checked after the first 50 hours of operation to determine if corrosive conditions exist. If satisfactory this interval may be extended to 500 hours.

Is the sacrificial zinc anode 50% corroded?

If sacrificial zinc anode is 50% corroded it should be replaced.

Is the boat operating in coastal/harbour waters?

Coastal/harbour waters can contain corrosive chemicals from pollution and may reduce anode/cooler life.

Effects of corrosion or erosion are specifically excluded from warranty considerations.

Sign off on the zinc anode check

Warning: Only trained personnel should perform this procedure.

Position a suitable container under the drain plug.

Remove additional coolant from the airend discharge tube and oil coolers.

Replace the plug and refill the compressor.

CAUTION - DO NOT MIX OILS WITH ULTRA COOLANT.

Start the compressor and check for leaks.

Is the coolant visible in the sight glass while the machine is running on load?

Is the coolant level between the middle and the top of the green section of the sight glass?

Did you run the compressor for a minimum of 40 seconds before stopping?

Did you add coolant until the level is up to the mid-point of the sight glass?

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid
