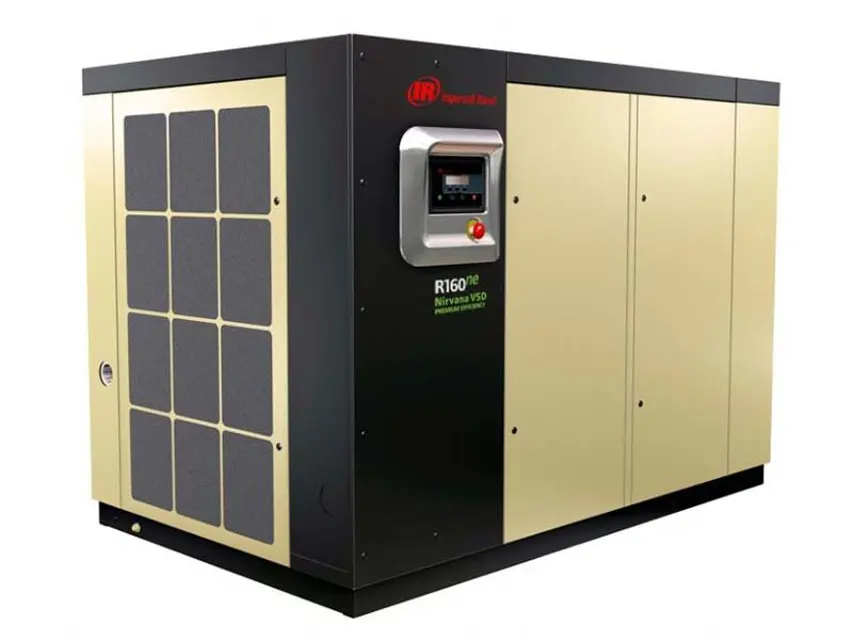

Ingersoll Rand Air Compressor R150IU-140

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of lubricant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Start the compressor and check for leaks

Sign off on the coolant filter replacement

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of lubricant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Start the compressor and check for leaks

Sign off on the coolant filter replacement

Take coolant sample for fluid analysis

Check scavenge screen for blockage, clean if required

Check the calibration of the pressure transducer

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid

Warning: Do not operate unit past the 1000 hour change interval, as coolant degradation will occur.

Enter the current operating hours of the unit

Enter the date of the last coolant change

Is the coolant due for replacement?

Sign off on the coolant replacement
