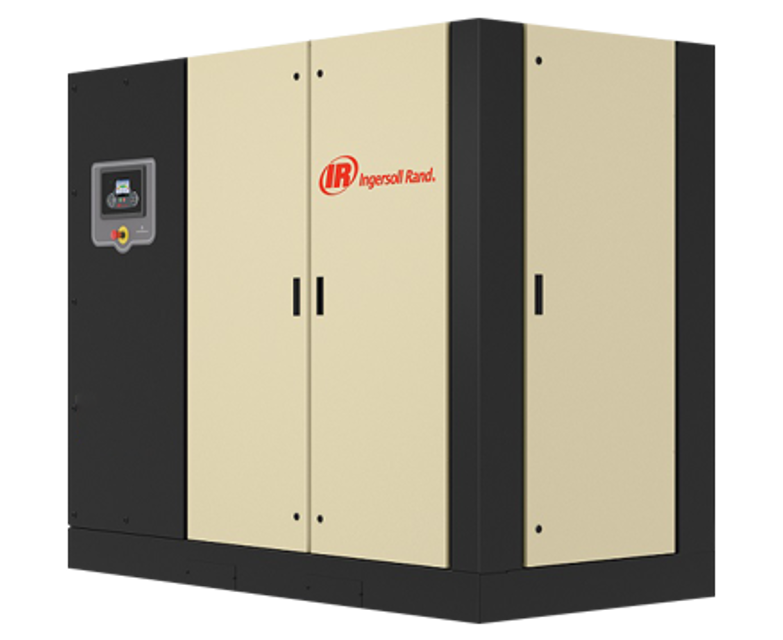

Ingersoll Rand Air Compressor R110IU-8.5

Airend bearings are lubricated by the compressor coolant and require no maintenance.

Clean the area around the inlet and outlet plugs before removing the plugs.

Add the specified quantity of recommended grease using a hand lever gun.

Replace the inlet plug, run the machine for 10 minutes and then replace the outlet plug.

Motor Bearings Lubricant Specifications

Use MOB SHC220 grease or equivalent.

CAUTION! Do not over pack the motor bearings with grease as this may lead to motor failure.

• Unscrew the retaining nut and withdraw the old elements

• Fit the new element ensuring that the retaining nut is secured

• Unclip the retaining cap and withdraw the old elements)

. Fit new elements) and refit the retaining cap.

Unscrew the retaining nut and remove the cannister lid

NOTE: On some sea water cooled models the oil cooler and after cooler are fitted with sacrificial zinc anodes (pencils) that are located in the end bonnets of the coolers. These sacrificial zinc anodes should be checked after the first 50 hours of operation to determine if corrosive conditions exist. If satisfactory this interval may be extended to 500 hours.

Is the sacrificial zinc anode 50% corroded?

If sacrificial zinc anode is 50% corroded it should be replaced.

Is the boat located in coastal/harbour waters?

Coastal/harbour waters can contain corrosive chemicals from pollution and may reduce anode/cooler life.

Effects of corrosion or erosion are specifically excluded from warranty considerations.

Sign off on the zinc anode check

Loosen filter element with the correct tool

Remove the element from the housing

Place the old element in a sealed bag and dispose of in a safe way

Clean the mating face of the housing

Remove the new Ingersoll Rand replacement element from its protective package

Apply a small amount of lubricant to the element seal

Screw the new element down until the seal makes contact with the housing, then hand tighten a further half turn

Start the compressor and check for leaks

Sign off on the coolant filter replacement

Warning: Only trained personnel should perform this procedure.

Position a suitable container under the drain plug.

Drain plug removed and coolant completely drained?

Additional coolant removed from the airend discharge tube and oil coolers?

Drain plug replaced and compressor refilled?

CAUTION - DO NOT MIX OILS WITH ULTRA COOLANT.

Compressor started and checked for leaks?
