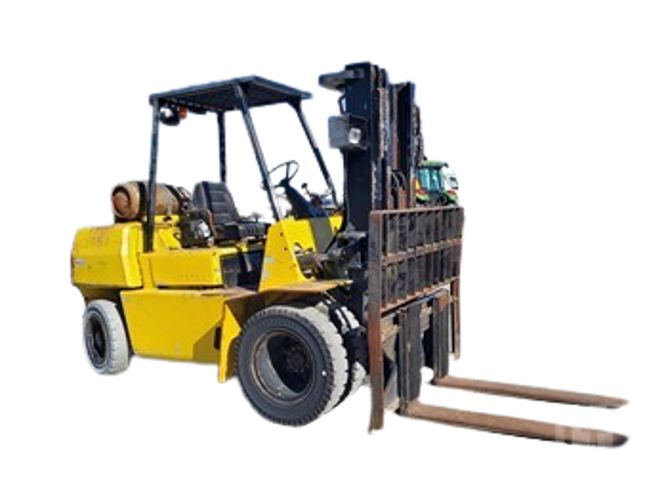

Hyster-Yale Hyster-Yale Forklift H90XL H90XL
Need answers fast?
Explore the manual using AI.
The Hyster-Yale Forklift H90XL is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and efficiency, this model excels in material handling tasks, making it an essential asset for warehouses and manufacturing facilities. Optimize your operations with the H90XL's advanced features and durable construction.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

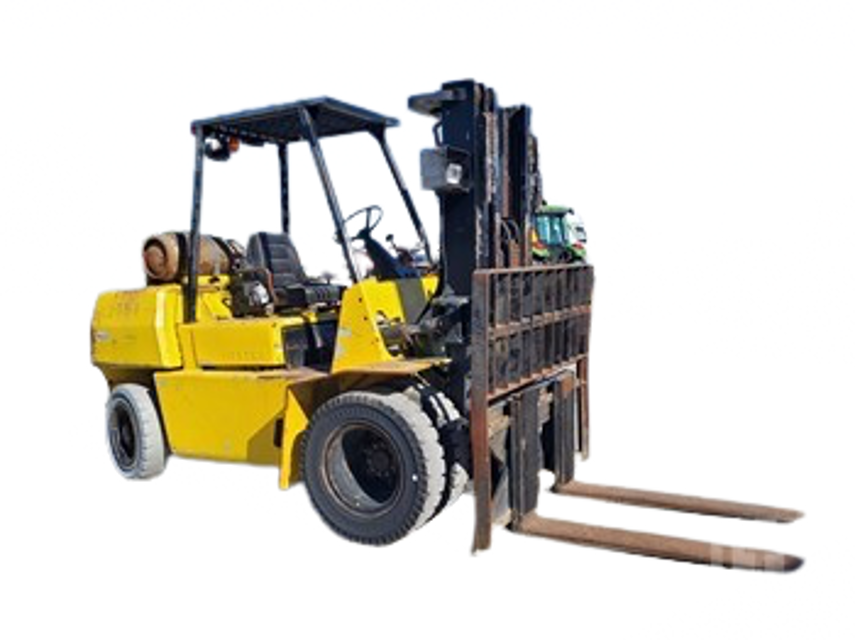

Hyster-Yale Hyster-Yale Forklift H90XL H90XL
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Hyster-Yale Forklift H90XL Model H90XL
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly / 1 Yearly Cooling System Replacement
- Replace Cooling system gasoline/LPG
- Replace Cooling system Diesel, Perkins 4.2482
- Replace Cooling system Diesel, Perkins 1004-42;
350 Hourly / 2 Monthly Forklift Maintenance
Diesel Engine oil replaced
Debris cleaned from radiator core
Condition and operation of the mast, carriage and lift chains checked
Forks condition checked
Condition of the lift chains checked
Hydraulic tank breather cleaned or replaced
Air filter cleaned or replaced
NOTE! Very dirty conditions require daily check and cleaning
Brake fluid checked
2000 Hourly / 1 Yearly Filter Replacement
Air filter element replaced
Gasoline fuel filter replaced
LPG fuel filter replaced
Hydraulic system oil filter replaced
Oil clutch system oil filter replaced
Sign off on the filter replacement
1000 Hourly / 6 Monthly Forklift Maintenance
Replace final diesel fuel filter
Replace spark plugs
Check PCV Valve
Check timing of the engines
Check engine valve adjustments
Check manual transmission, speed reducer and differential oil
Check single speed powershift transmission
Replace Fuel filter
Replace primary diesel fuel filter
6 Weekly / 250 Hourly Mast Lubrication
Lubricate pivots
Lubricate Sliding Surfaces and Load Roller Surfaces
Lubricate Sideshift carriage
Lubricate Fork guides
Sign off on the lubrication process
Parts for Hyster-Yale Hyster-Yale Forklift H90XL H90XL
Access the parts list for your equipment in MaintainX.
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
Universal Premium Hydraulic Oil
336831
Silicon Spray
328388
