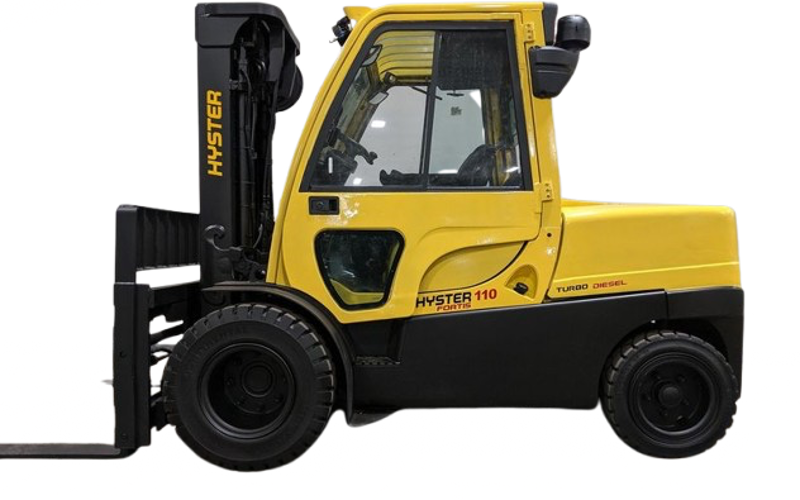

Hyster-Yale Forklift H120FT
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Hyster-Yale Forklift H120FT
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more

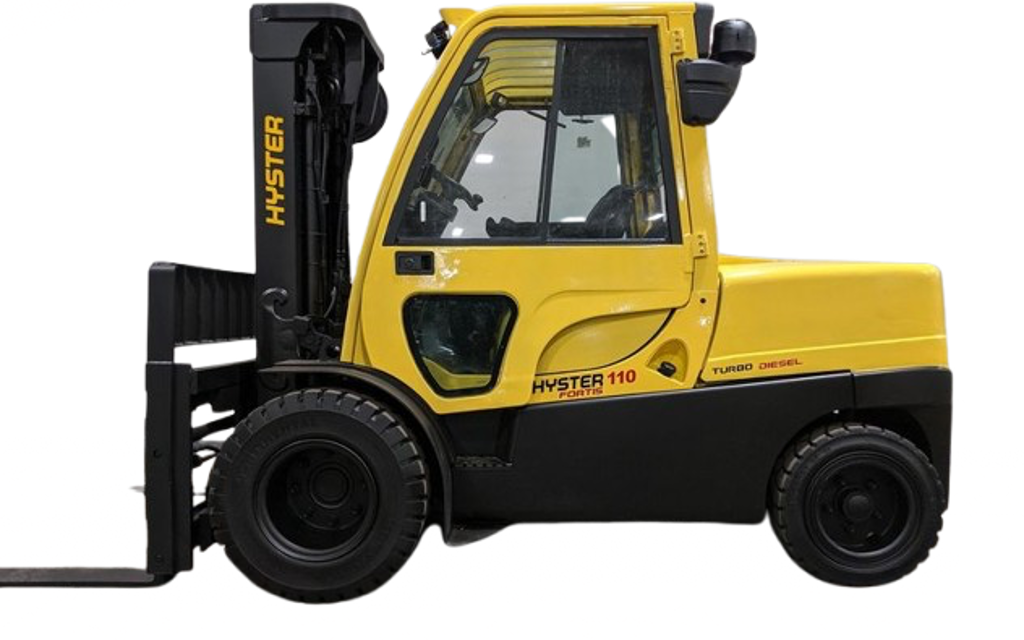

Hyster-Yale Forklift H120FT
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model H120FT
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly / 1 Yearly Filter Change
Change hydraulic oil filter
Change air filter
Change gasoline fuel filter
Sign off on the filter change
500 Hourly / 6 Monthly Forklift Maintenance
Change Diesel Engine oil Cummins 4.5L
Change Diesel Engine oil Cummins QSB 3.3L
Clean debris from radiator core
Lubricate fork latches
Lubricate lift chains
Lubricate tilt cylinder ends
Lubricate brake master cylinder rod end pin
Lubricate manual hydraulic hand levers
Lubricate steering axle fittings;
500 Hourly / 6 Monthly Filter Change
Diesel Engine Oil Filter Change
Change Diesel Engine Oil Filter Cummins 4.5L
Change Diesel Engine Oil Filter Cummins QSB 3.3L
Fuel Water Separator Filter Change
Change fuel water separator filter for Cummins 4.5L
Change fuel water separator filter for Cummins QSB 3.3L
Final Fuel Filter Change
Change final fuel filter Cummins QSB 3.3L engine
Sign off on the filter change
2000 Hourly / 1 Yearly Forklift Maintenance
Change hydraulic tank breather
Check oxygen sensor. Replace if it is necessary
Check oxygen sensor indicator light
Adjust engine valve
Check engine fuel injectors
Change engine cooling system
Change transmission oil dry brake
Change transmission oil filter and breather
Check forks conditions
500 Hourly / 6 Monthly Forklift Check
Hydraulic oil check
Hydraulic tank breather check
Battery and cable terminals check
Parking brake adjustments check
Differential and Drive axle oil check
Transmission and planetary carrier housing oil check
Wet brake center section oil check
Header hoses check
Transmission oil dry brake check
Parts for Hyster-Yale Forklift H120FT
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Spray Lubricant
4066494
Silicon Spray
328388
Spray Lubricant
4066494
Silicon Spray
328388
Spray Lubricant
4066494
