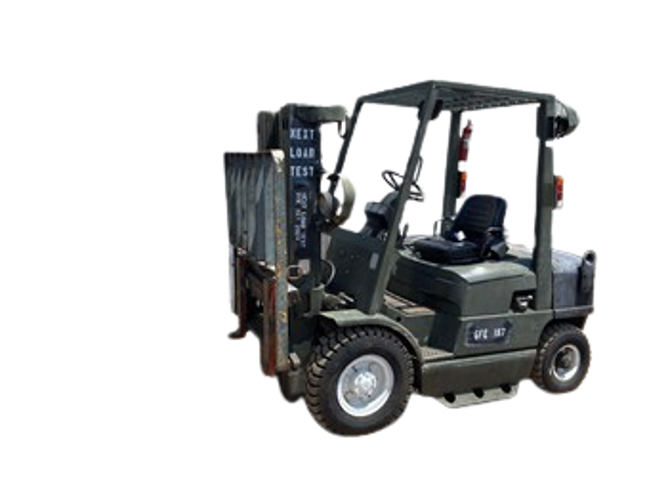

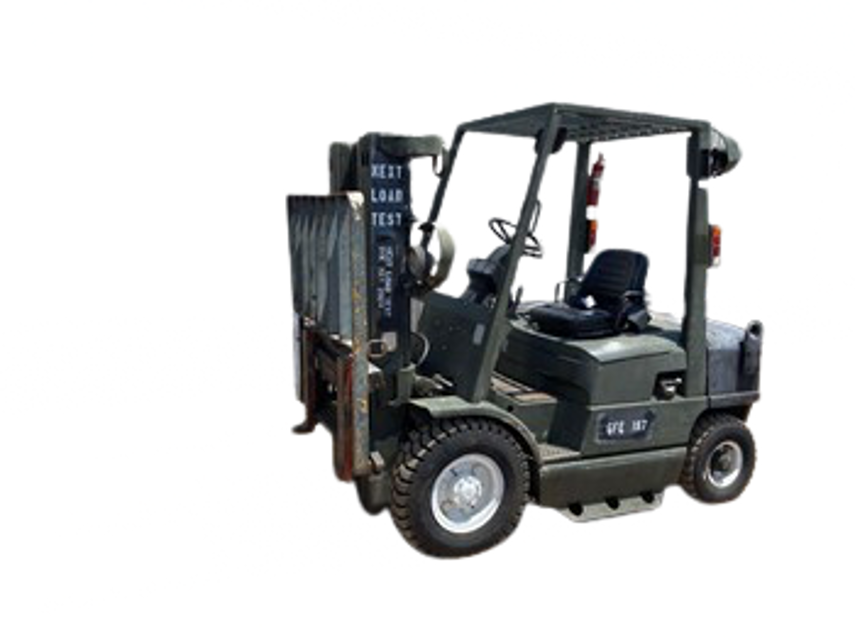

Hyster-Yale Forklift H-60XM
Need answers fast?
Explore the manual using AI.
The Hyster-Yale Forklift H-60XM is a robust industrial forklift designed for heavy-duty applications. Known for its reliability and performance, this model excels in material handling tasks, making it a preferred choice for warehouses and distribution centers. Optimize your operations with the H-60XM's advanced features and durable construction.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Hyster-Yale Forklift H-60XM
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Forklift H-60XM
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model H-60XM
Integrate maintenance plans directly into your work orders in MaintainX.
250 Hourly / 6 Weekly Mast Lubrication
Lubrication Procedure
Lubricate mast pivots
Lubricate mast sliding surfaces and load roller surfaces
Lubricate sideshift carriage
Sign off on the lubrication procedure
8 Hourly / 1 Daily Oil Check
Check transmission oil indicator light during operation
Check engine oil Mazda M4-2.0G (Gasoline and LPG)
Check engine oil Mazda M4-2.0G (Gasoline and LPG) indicator light
Check engine oil Mazda M4-2.2G (Gasoline and LPG)
Check engine oil Mazda M4-2.2G (Gasoline and LPG) indicator light
Check engine oil Mazda GM 3.0L (Gasoline and LPG)
Check engine oil Mazda GM 3.0L (Gasoline and LPG) indicator light
Check diesel engine oil Perkins 704-26 (UB)
Check diesel engine oil Perkins 704-26 (UB) indicator light
8 Hourly / 1 Daily Fuel System Check
Check the fuel system for leaks prior to any service or maintenance activity
Check fuel tank
Check fuel tank indicator light during operation
Sign off on the fuel system check
250 Hourly / 6 Weekly Forklift Maintenance
Check forks condition
Check transmission oil level
Change engine oil filter
Check brake fluid level
Check hydraulic oil level
Clean debris from radiator core
Check air filter
Check battery electrolyte level
Clean battery case and cables
8 Hourly / 1 Daily Cooling System Check
Check cooling system Mazda M4-2.0G (Gasoline and LPG)
Check cooling system Mazda M4-2.0G (Gasoline and LPG) indicator light
Check cooling system Mazda M4-2.2G (Gasoline and LPG)
Check cooling system Mazda M4-2.2G (Gasoline and LPG) indicator light
Check cooling system Mazda GM 3.0L (Gasoline and LPG)
Check cooling system Mazda GM 3.0L (Gasoline and LPG) indicator light
Check cooling system Perkins 704-26 (UB)
Check cooling system Perkins 704-26 (UB) indicator light
Check coolant hoses condition
Parts for Hyster-Yale Forklift H-60XM
Access the parts list for your equipment in MaintainX.
10 ml Blue Removable Threadlock
318702
100 ml Super Flex Silicone
318705
50 ml Purple Small Screw Threadlock
360387
50 ml Retaining Compound
341959
6 oz Primer T - Aerosol
226415
10 ml Blue Removable Threadlock
318702
100 ml Super Flex Silicone
318705
50 ml Purple Small Screw Threadlock
360387
50 ml Retaining Compound
341959
6 oz Primer T - Aerosol
226415
10 ml Blue Removable Threadlock
318702
100 ml Super Flex Silicone
318705
50 ml Purple Small Screw Threadlock
360387
50 ml Retaining Compound
341959
6 oz Primer T - Aerosol
226415
