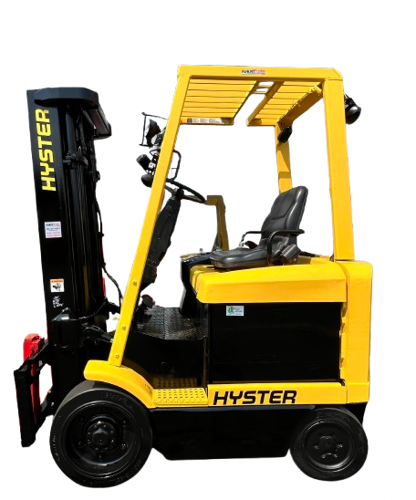

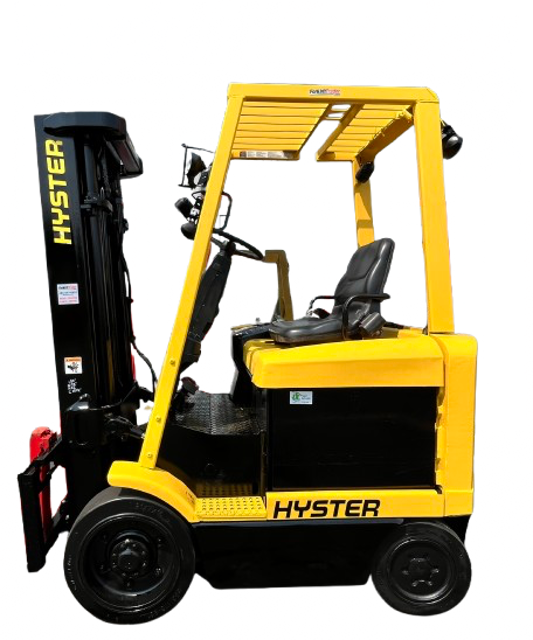

Hyster-Yale Forklift E50Z-33
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Hyster-Yale Forklift E50Z-33
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Hyster-Yale Forklift E50Z-33
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Forklift Model E50Z-33
Integrate maintenance plans directly into your work orders in MaintainX.
2000 Hourly / 1 Yearly Hydraulic System Change
Change hydraulic filter
Change hydraulic oil
Change hydraulic tank breather
Sign off on the hydraulic system change
8 Hourly / 1 Daily Forklift Check
Tires condition
DC motor brushes for proper operation
Indicator light of the hydraulic pump motor during operation
Parking brake operation
Indicator light of the parking brake during operation
Service brake operation
Indicator light of the service brake during operation
Indicator of the brake fluid during operation
Drive and steer wheels condition
1000 Hourly / 6 Monthly Forklift Maintenance
Check hydraulic pump motor brushes condition
Change brake linkage and shafts
Check brake fluid level
Check differential and speed reducer oil level
Check lift chains length
Check integral sideshaft carriage bearings for wear
Check contactors condition
Sign off on the forklift maintenance
2000 Hourly / 1 Yearly Forklift Maintenance
Lubricate wheel bearings
Check service brakes condition
Change brake fluid
Lubricate steer and drive wheels
Change differential and speed reducer oil
Remove lift chains to clean and replace
Check forks condition
Change damaged bearings of the integral sideshift carriage
Sign off on the forklift maintenance
500 Hourly / 3 Monthly Forklift Maintenance
Adjust parking brake as necessary
Check brake fluid
Check wheel nuts torque
Check drive wheel nuts torque
Check header hoses condition
Check differential and speed reducer oil level
Check forks condition
Clean hydraulic tank breather. Replace if it is necessary
Check seat brake condition. Adjust if it is necessary
Parts for Hyster-Yale Forklift E50Z-33
Access the parts list for your equipment in MaintainX.
Silicon Spray
328388
Silicon Spray
328388
Silicon Spray
328388
