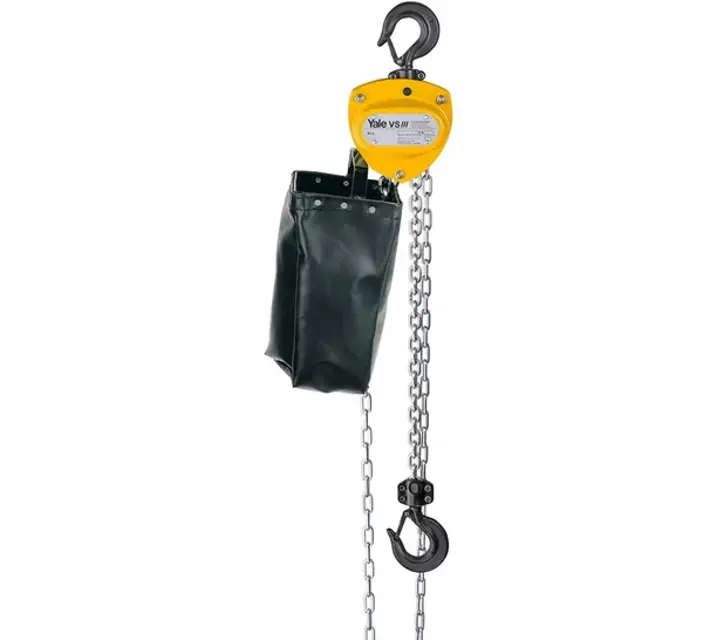

Hyster-Yale Chain Hoist SHA-1 1/2
Create an account to install this asset package.
Maintenance Plans for Hyster-Yale Chain Hoist Model SHA-1 1/2
Integrate maintenance plans directly into your work orders in MaintainX.
1 Daily Chain Check
CAUTION: If chain is worn or otherwise damaged, replace entire chain with new chain supplied by the hoist manufacturer. Do not substitute. Do not attempt to rework damaged chain.
Check chain for wear and twist
Use calipers to check the chain for wear as shown in Figure 1
Upload a photo of the chain
Is the chain showing damage or wear beyond the wear limit shown?
Make certain that caliper anvils are small enough to seat in the links
Sign off on the daily chain check
Hoist Lubrication
Warning: Good lubrication is vital to long chain life.
Load chain well oiled with SAE 30 weight oil
If the hoist is disassembled for inspection or repair, re-lubricate the moving parts according to Table 3.
Moving parts re-lubricated according to Table 3
CAUTION: The brake surfaces must be kept free of any trace of oil or grease.
Brake surfaces free of any trace of oil or grease
Sign off on the hoist lubrication
Parts for Hyster-Yale Chain Hoist SHA-1 1/2
Access the parts list for your equipment in MaintainX.
Pinion Shaft 1 1/2 Ton
KHH5001
Pinion Gear 1 1/2 Ton
KHH5003T
Load Gear 1 1/2 Ton
KHH5004
Load Sheave 1 1/2 Ton
KHE5008
Hand Chain (Per Foot) 1 1/2 Ton
GHH5009J
Pinion Shaft 1 1/2 Ton
KHH5001
Pinion Gear 1 1/2 Ton
KHH5003T
Load Gear 1 1/2 Ton
KHH5004
Load Sheave 1 1/2 Ton
KHE5008
Hand Chain (Per Foot) 1 1/2 Ton
GHH5009J
Pinion Shaft 1 1/2 Ton
KHH5001
Pinion Gear 1 1/2 Ton
KHH5003T
Load Gear 1 1/2 Ton
KHH5004
Load Sheave 1 1/2 Ton
KHE5008
Hand Chain (Per Foot) 1 1/2 Ton
GHH5009J
