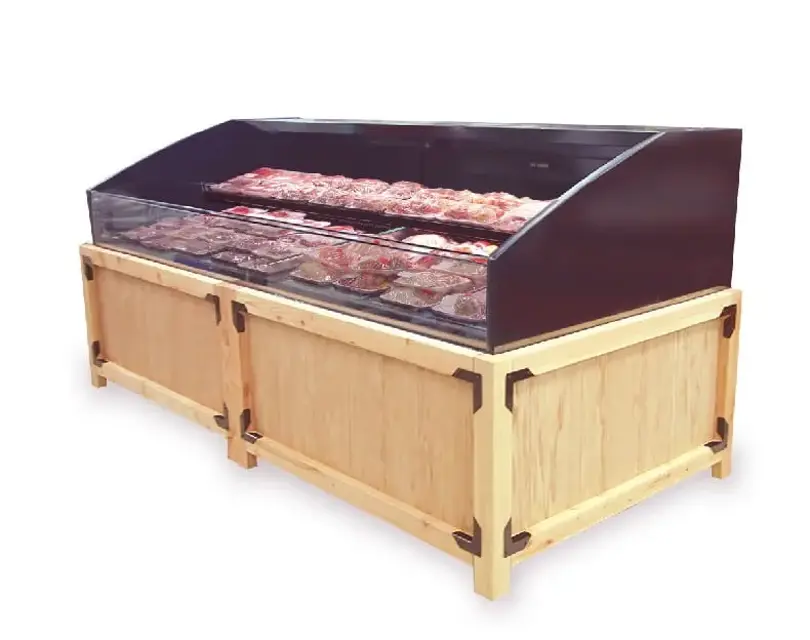

Hussmann Q-Series Medium Temperature Self Contained Merchandiser Q3SSM4S

CAUTION! Evaporation Pan is Hot! and poses risk of bodily injury – Always Wear gloves and protective eye wear when servicing.

Turn off evaporation pan heater, and allow pan to cool.

The condensate water outlet for self contained models empties into a limited capacity evaporation pan.

Check for debris or dirt accumulation inside the condensate evaporation pan or on the heater coil.

Debris or dirt accumulation inside the condensate evaporation pan or on the heater coil will reduce the pan’s evaporation capacity and cause premature heater failure.

Remove accumulated debris from the evaporation pan.

Wipe down heater coil with a cloth and warm water.

Remove any dirt, debris or liquids from the heater coil.

Water introduced during cleaning will cause the evaporation pan to overflow.

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if condenser coils are clean

If coils are dirty, proceed to next step

Upload a photo of the dirty coils

Clean the coils using a vacuum cleaner with a wand attachment and a soft (non-metallic) brush

Upload a photo of the clean coils

• Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

Exterior Surfaces • The exterior surfaces must be cleaned with a mild detergent and warm water to protect and maintain their attractive finish. Never use abrasive cleansers or scouring pads.

• The interior surfaces may be cleaned with most domestic detergents, ammonia based cleaners and sanitizing solutions with no harm to the surface. Self contained models empty into a limited capacity evaporation pan, which will overflow if excess water is used in cleaning.

•Abrasive cleansers and scouring pads, as these will mar the finish.

•Coarse paper towels on coated glass.

•Ammonia-based cleaners on acrylic parts.

Clean evaporator coil/s and fan blade/s. Do not use an acid base cleaner. Rinse off any cleaner residue.

Clean discharge air honeycombs or grilles. Do not use an acid base cleaner. Rinse off any cleaner residue.

Clean condenser coil/s and fan blade/s. Do not use an acid base Cleaner. Rinse off any cleaner residue.

Clean condensate drain pan and drain line.

Verify condensate drain lines are clear and functioning.

Record voltage reading at unit with unit off.

Record voltage reading with unit running.

Record defrost heater voltage and amp draw.

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Non-abrasive cleaning materials used

Polished with grain of the steel

Used warm water or added a mild detergent to the water and applied with a cloth

Used alkaline chlorinated or non-chlorine containing cleaners such as window cleaners and mild detergents

Did not use cleaners containing salts

Sign off on the stainless steel surfaces cleaning
