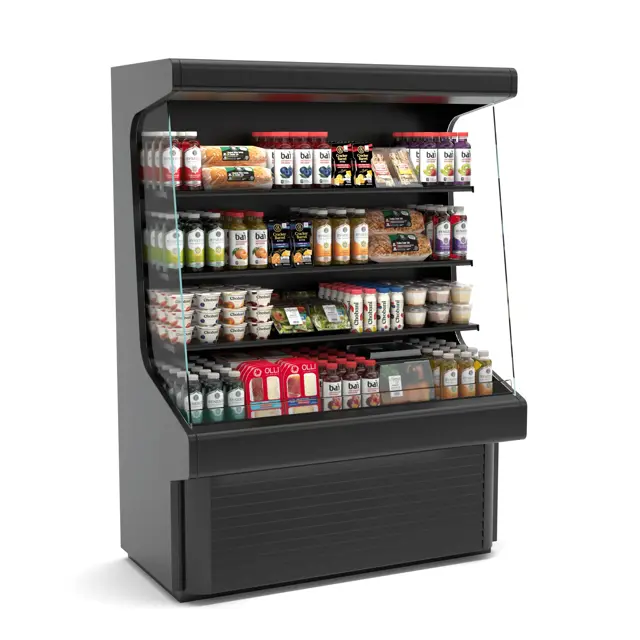

Hussmann Merchandiser MD14 UL

Clean evaporator coil/s and fan blade/s. Do not use an acid base cleaner. Rinse off any cleaner residue.

Clean discharge air honeycombs or grilles. Do not use an acid base cleaner. Rinse off any cleaner residue.

Clean condenser coil/s and fan blade/s. Do not use an acid base Cleaner. Rinse off any cleaner residue.

Clean condensate drain pan and drain line.

Verify condensate drain lines are clear and functioning.

Record voltage reading at unit with unit off.

Record voltage reading with unit running.

Record defrost heater voltage and amp draw.

Warning: Always wear gloves and protective eye wear when servicing.

Warning: Product will be degraded and may spoil if allowed to sit in a non-refrigerated area.

Warning: Do NOT use HOT water on cold glass surfaces. This can cause the glass to shatter and could result in personal injury. Allow glass fronts, to warm before applying hot water.

Warning: To reduce the risk of fire, electrical shock or injury when cleaning this merchandiser: Unplug the merchandiser before cleaning. Keep all liquids away from electrical and electronic components. Do not use any mechanical device or other means to speed the defrost process, except as recommended by the manufacturer.

Merchandiser unplugged before cleaning?

All liquids kept away from electrical and electronic components?

No mechanical device or other means used to speed the defrost process, except as recommended by the manufacturer?

Exterior surfaces cleaned with a mild detergent and warm water?

No abrasive cleaners, scouring pads, caustic soda, kerosene, gasoline, thinner, solvents, detergents, acids, chemicals, abrasives or ammonia-based cleaners used on exterior surfaces?

Product removed and placed in a refrigerated area

No refrigerant left in the system

Welded joints that connect the condensing units and the evaporator removed

Condensing unit slid out completely

All wires and harness from the compressor disconnected

Record any complaints or issues from the store manager

Check unit for any damage, vibrations or abnormal noise

Verify unit is level side to side and front to rear

Confirm refrigerant lines are properly secured and not touching or rubbing other lines, wires or frame work

Verify fan motors and motor mounts are tight

Confirm fan blade/s are tight and not rubbing or hitting

Make sure all electrical connections, factory and field, are tight

Verify electrical connections at lamps are secure and dry

Check for and replace any frayed or chaffed wiring

To maintain peak operating efficiency, the coil should be cleaned at least once each month. A dirty coil slows product cooling significantly and increases energy consumption by as much as 20%. Dirt buildup on coils can also cause the compressor to lock up damaging the condenser unit. All MD models have the same access panel design for commonality between merchandisers.

Remove the holding screw to release the condensing unit base.

Once the condensing unit base is free, you can slide it out for service. Use base handle to pull out the condensing unit. Pulling on refrigeration lines or others parts will cause damage to the unit.

Use a soft hand brush attachment on a vacuum to remove accumulated dust and debris.

Sign off on the condenser coils cleaning
