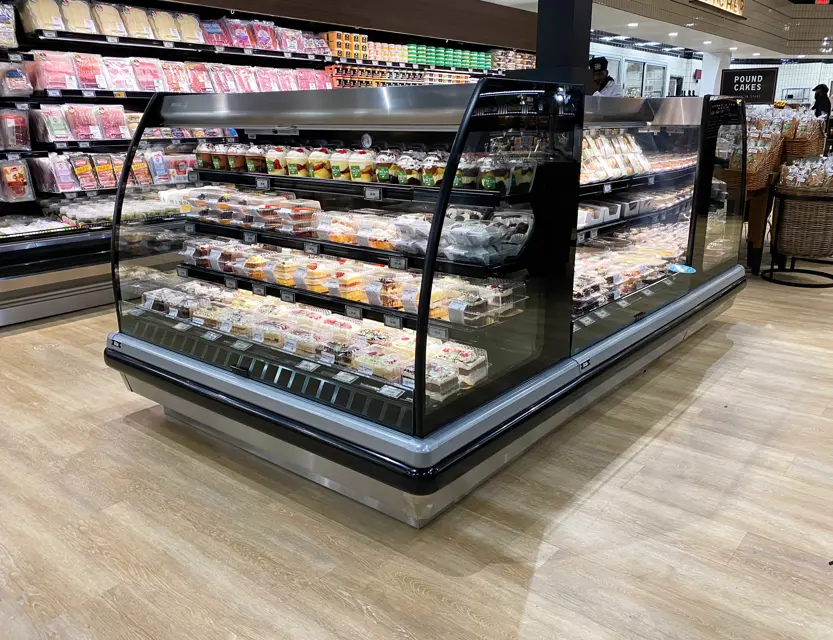

Hussmann Hussmann Merchandiser IM-05-5R IM-05-5R

DANGER! BEFORE SERVICING! ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT. This includes (but not limited to) Fans, Heaters Thermostats, and Lights.

The evaporator fans are located at the center front of these merchandisers directly beneath the display pans.

Should fans or blades need servicing, always replace fan blades with the raised embossed side of the blade TOWARD THE MOTOR.

Upload a photo of the replaced fan

Sign off on the fan maintenance

DANGER! ALWAYS DISCONNECT ELECTRICAL POWER AT THE MAIN DISCONNECT WHEN SERVICING OR REPLACING ANY ELECTRICAL COMPONENT.

CAUTION! Fluorescent Lamps contain mercury vapor. Do not break or puncture flourescent lamps. Dispose of, or store, all flourescent lamps in accordance with Federal (40 CFR 273), State and local hazardous waste requirements.

Fluorescent lamps are furnished with a shatterproof protective coating.

The same type of lamp with protective coating is used if replaced.

Sign off on the lamp replacement

- Only use a soft cloth and mild glass cleaner for cleaning any glass or mirrored components. Be sure to rinse and/ or dry completely.

* Never use hot water on cold glass surfaces! It may shatter and cause serious injury! Allow glass surfaces to warm first.

When cleaning: • Do not use high pressure water hoses

• Do not introduce water faster then waste outlet can drain

• NEVER INTRODUCE WATER ON SELF CONTAINED UNIT WITH AN EVAPORATOR FAN

• NEVER USE A CLE NIN OR SANITIZING SOLUTION THAT HAS AN OIL BASE (these will dissolve the butyl sealants) or an AMMONIA BASE (this will corode the copper components of the case)

• TO PRESERVE THE ATTRACTIVE FINISH:

• DO USE WATER AND A MILD DETERGENT FOR THE EXTERIOR ONLY

Warning: Never use sharp objects around coils. Use a soft brush or vacuum brush to clean debris from coils.

Warning: Do not puncture coils! Do not bend fins.

Contact an authorized service technician if a coil is punctured, cracked, or otherwise damaged.

Do NOT use chlorine or ammonia-based cleaners to clean aluminum coils.

Is there ICE in or on the coil?

Contact an authorized service technician to determine the cause of icing, and to make adjustments as necessary.

To maintain product integrity, move all product to a cooler until the unit has returned to normal operating temperatures.

* There are three basic things, which can break down your stainless steel’s passivity layer and allow corrosion.

• Mechanical Abrasion means those things that will scratch the steels surface. Steel Pads, wire Brushes, and Scrapers are prime examples.

• Water comes out of our tap in varying degrees of hardness. Depending on what part of the country you live in, you may have hard or soft water. Hard water may leave spots. Also, when heated, hard water leaves deposits behind that if left to sit, will break down the passive layer and rust your stainless steel. Other deposits from food preparation and service must be properly removed.

• Chlorides are found nearly everywhere. They are in water, food and table salt. One of the worst perpetrators of chlorides can come from household and industrial cleaners.

* Don’t Despair! Here are a few steps that can help prevent stainless steel rust.
