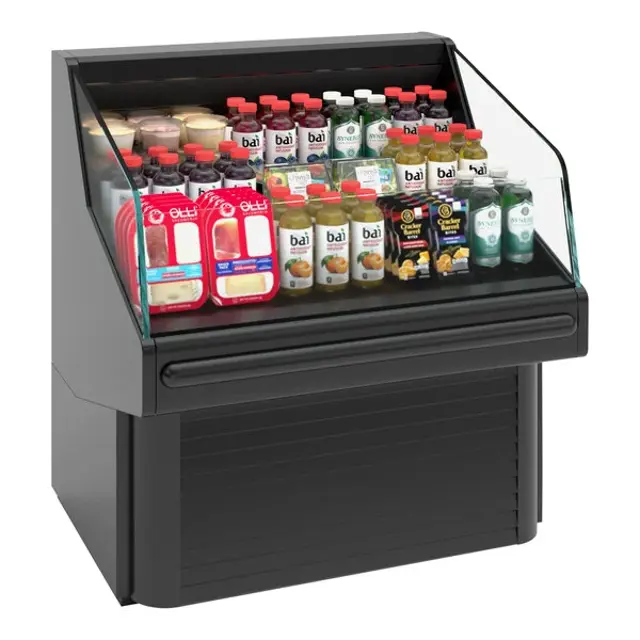

Hussmann Medium Temperature Self Contained Specialty Horizontal Merchandiser SHM-3

• This section is only valid if the Optional Light Bar is ordered - field installed only.

• There is a convenient ON/OFF switch located on the light bar. This switch only controls the lights. ALWAYS disconnect electrical power when replacing lights or lighting parts.

• SHM merchandisers are available with optional LED lights. The bulb is sleeved to protect the lights from damage. If these bulbs need to be replaced, slide the prongs clear of the lamp holder. Ensure that the prongs on the replacement bulb twist and lock into place.

WARNING! Fluorescent lamps contain mercury vapor. Mercury exposure at high levels can harm the brain, heart, kidneys, lungs, and immune system of people of all ages. Do not break or puncture fluorescent lamps.

* Dispose of, or store, all fluorescent lamps in accordance with Federal (40 CFR 273), State, and local hazardous waste require-ments.;

Record any complaints or issues the store manager has with the unit

Check unit for any damage, vibrations or abnormal noise

Verify unit is level side to side and front to rear

Confirm refrigerant lines are properly secured and not touching or rubbing other lines, wires or framework

Verify fan motors and motor mounts are tight

Confirm fan blades are tight and not rubbing or hitting

Make sure all electrical connections, factory and field, are tight

Verify electrical connections at lamps are secure and dry

Check for and replace any frayed or chaffed wiring

Always disconnect electrical power before cleaning.

Product removed from the merchandiser and placed in cooler

Step pan cleaned with non-abrasive cleaning materials and a mild detergent

Insides of the merchandiser wiped down with a mild detergent

Sign off on the cleaning procedure

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Use non-abrasive cleaning materials, and always polish with grain of the steel.

Use warm water or add a mild detergent to the water and apply with a cloth. Always wipe rails dry after wetting.

Choose the type of cleaner used

Did you avoid cleaners containing salts?

Sign off on the cleaning procedure

CAUTION! Evaporation Pan is Hot! and poses risk of bodily injury - Always Wear glove and protective eye wear when servicing. Turn off evaporation pan heater, and allow pan to cool.

PRECAUTION! CLEANING PRECAUTIONS

The condensate water outlet for self contained models empties into a limited capacity evaporation pan.

Debris or dirt accumulation inside the condensate evaporation pan or on the heater coil will reduce the pan's evaporation capacity and cause premature heater failure.

The evaporation pan waste water will overflow and spill onto the floor if the heater is not properly operating.

Remove accumulated debris from the evaporation pan.

Wipe down heater coil with a cloth and warm water. Be sure to remove any dirt, debris or liquids from the heater coil.

Water introduced during cleaning will cause the evaporation pan to overflow.

Do not use high pressure water hoses
