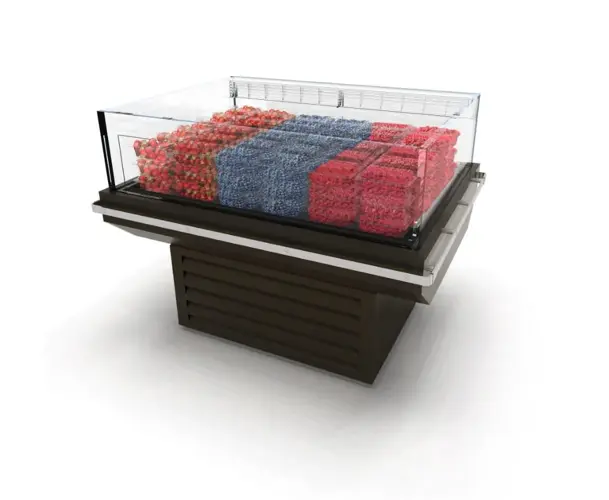

The Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISMGG-5R is designed for optimal food preservation and display. This energy-efficient unit combines advanced refrigeration technology with user-friendly features, making it ideal for retail environments. Enhance your merchandising strategy with this reliable and stylish solution from Hussmann.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

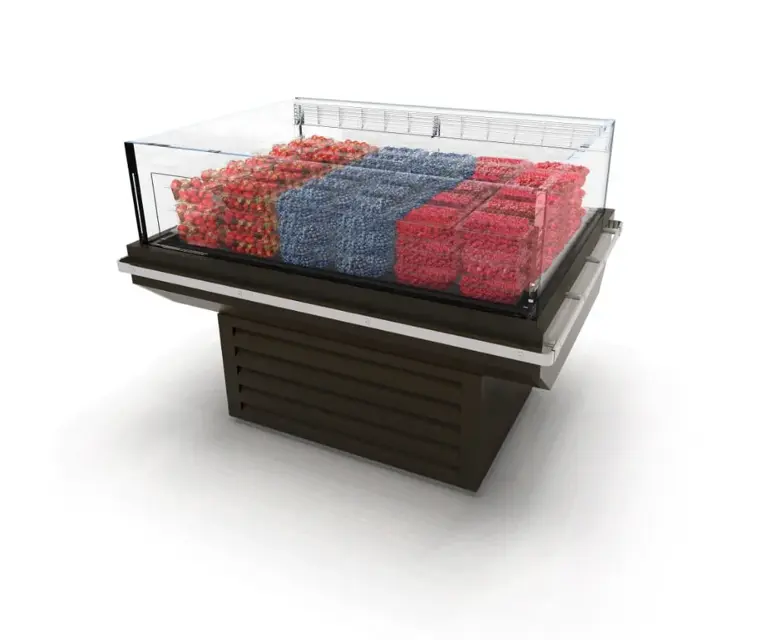

Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISMGG-5R

Create an account to install this asset package.

Maintenance Plans for Hussmann Low and Medium Temperature Self Contained Island Merchandiser Model ISMGG-5R

Integrate maintenance plans directly into your work orders in MaintainX.

Fan Motor and Blades Replacement

Warning: Product will be degraded and may spoil if allowed to sit in a non-refrigerated area.

Warning: LOCK OUT / TAG OUT - To avoid serious injury or death from electrical shock, always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Fan blades reinstalled correctly with raised embossing positioned as indicated on the parts list?

Product removed and placed in a refrigerated area?

Power to the merchandiser turned off?

Bottom display pans removed?

Fan disconnected from wiring harness?

Fan blade removed?

Screws holding bottom of motor to fan basket removed?

Run this procedure

1 Monthly Coils Cleaning

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser is dirty.

If the condenser is dirty, proceed with the following steps.

Use a vacuum cleaner with a wand attachment to clean the coils.

Use a soft (non-metallic) brush to remove dirt and debris.

Ensure not to bend coil fins during the cleaning process.

Sign off on the monthly coils cleaning

Run this procedure

Stainless Steel Surfaces Cleaning

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Used non-abrasive cleaning materials and polished with grain of the steel?

Used warm water or added a mild detergent to the water and applied with a cloth? Wiped rails dry after wetting?

Type of cleaner used

Did you avoid cleaners containing salts?

Did you avoid bleach?

Sign off on the cleaning procedure

Run this procedure

Repairing Aluminium Coil

Warning: This procedure requires trained personnel with PPE!

Leak located?

All pressure removed?

Area brushed under heat?

Select the torch used

Warning: Use only stainless steel brushes on aluminum!

Surface tinned around area?

Tinned surface brushed under heat?

Leak repaired?

Run this procedure

Removing Scratches From Bumper

WARNING! Do NOT use HOT water on Cold glass Surfaces. This can cause the glass to shatter and could result in personal injury. Allow glass fronts, to warm before applying hot water.

Use steel wool to smooth out the surface area of the bumper.

Clean area.

Apply vinyl or car wax and polish surface for a smooth glossy finish.

Upload a photo of the bumper after the procedure

Sign off on the procedure

Run this procedure
