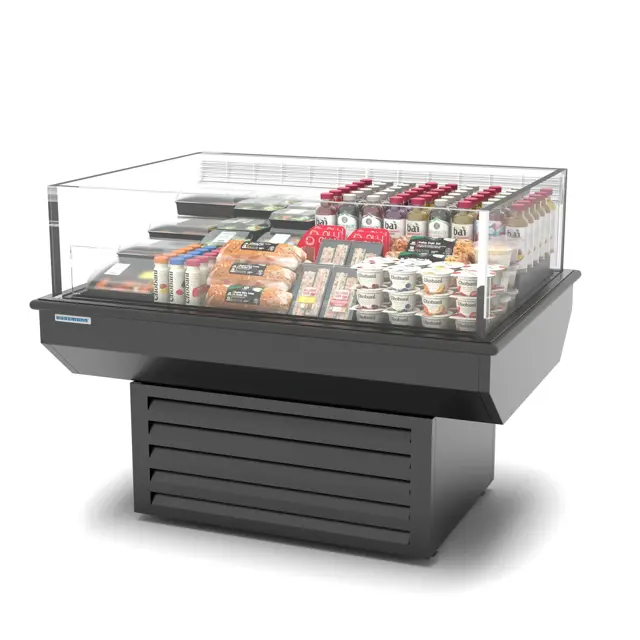

Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISFGG-5D

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser coils are clean

If the condenser coils are dirty, proceed with the following steps

Use a vacuum cleaner with a wand attachment to clean the coils

Use a soft (non-metallic) brush to remove dirt and debris

Ensure not to bend coil fins during the cleaning process

Sign off on the monthly coils cleaning

Product removed and placed in a refrigerated area

Power to the merchandiser turned off

Interior panels from under the nosing heater removed

Interior panel support bracket removed

Existing screws from sheet metal nosing panel removed

Existing anti-sweat heater unplugged and removed

Anti-sweat heater taped as shown in the illustrations

CAUTION! Evaporation Pan is Hot! and poses risk of bodily injury - Always Wear glove and protective eye wear when servicing. Turn off evaporation pan heater, and allow pan to cool.

PRECAUTION! CLEANING PRECAUTIONS

The condensate water outlet for self contained models empties into a limited capacity evaporation pan.

Debris or dirt accumulation inside the condensate evaporation pan or on the heater coil will reduce the pan's evaporation capacity and cause premature heater failure.

The evaporation pan waste water will overflow and spill onto the floor if the heater is not properly operating.

Remove accumulated debris from the evaporation pan.

Wipe down heater coil with a cloth and warm water. Be sure to remove any dirt, debris or liquids from the heater coil.

Water introduced during cleaning will cause the evaporation pan to overflow.

Do not use high pressure water hoses

WARNING! Do NOT use HOT water on Cold glass Surfaces. This can cause the glass to shatter and could result in personal injury. Allow glass fronts, to warm before applying hot water.

Use steel wool to smooth out the surface area of the bumper

Apply vinyl or car wax and polish surface for a smooth glossy finish

Sign off on the scratch removal process

• Should it ever be necessary to service or replace the fan motors or blades be certain that the fan blades are reinstalled correctly.

• THE BLADES MUST BE INSTALLED WITH RAISED EMBOSSING (PART NUMBER ON PLASTIC BLADES) POSITIONED AS INDICATED ON THE PARTS LIST.

1. Remove product and place in a refrigerated area. Turn off power to the merchandiser.

3. Disconnect fan from wiring harness.

5. Lift fan plenum and remove screws holding bottom of motor to fan basket.

6. Replace fan motor and blade.
