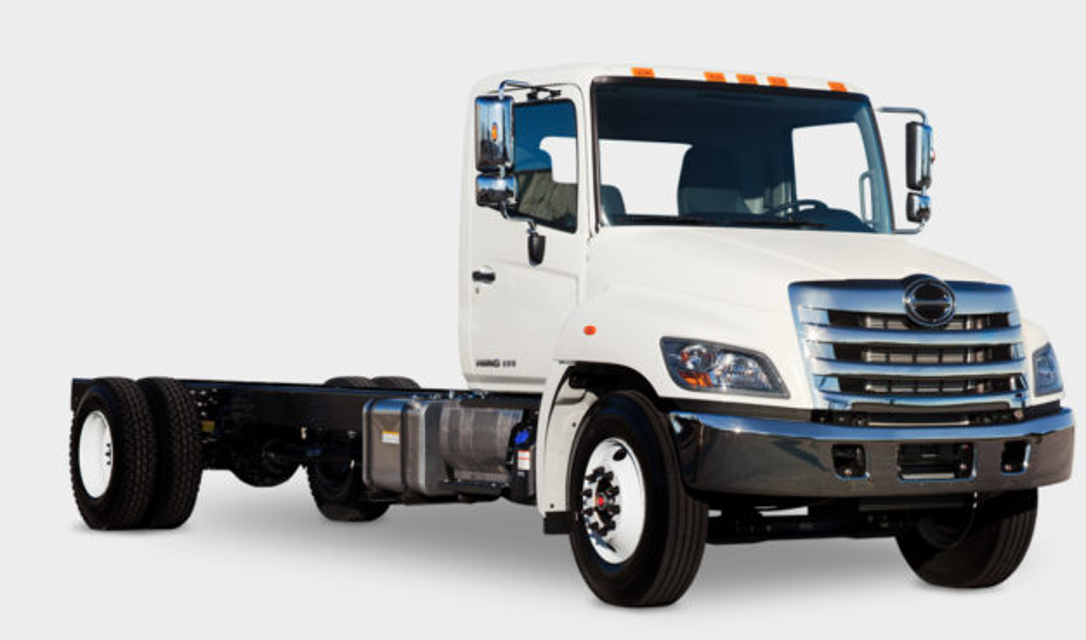

HINO Commercial Truck 358

Reinstall each electronic equipment to original place

Inspect the operation and function of all electronic equipment

For the detail of inspection’s procedure, please consult HMS (USA) or Hino authorized dealer.

Engine oil inspection, oil supply and discharge

Cooling water inspection, water supply and discharge

Transmission oil inspection, oil supply and discharge (Special care is needed when installing P.T.O.)

Differential oil inspection, oil supply and discharge (Care is needed when spare tire is mounted on the rear overhang.)

Grease up (Special care is needed when shifting the fuel tank on vehicles.)

Battery liquid inspection, water supply and discharge.

Warning: This maintenance check requires trained personnel with PPE!

Sufficient working space for dismounting and mounting the air dryer?

Air dryer dismounted successfully?

Desiccant inspected successfully?

If desiccant needs replacement, replace it and proceed to next step

Desiccant replaced successfully?

Air dryer mounted successfully?

Sign off on the air dryer desiccant maintenance

Warning: Ensure the vehicle is parked, the parking brake is applied, and wheel chocks are placed at the front or rear tires.

Has the engine been stopped and the tail pipe cooled adequately?

Warning: Be careful as the tail pipe installation location is at a high position.

Did any foreign matter drop inside the tail pipe?

If yes, contact a Hino dealer and have the foreign matter removed by taking off the lower tail pipe.

Has the insulator been removed (6 bolts)?

Has the clamp been temporarily attached at No.2 tail pipe without tightening?

Has No. 1 tail pipe been inserted inside No.2 tail pipe until it touches the shoulder on the inside of the No. 2 tail pipe?

If fitting was tight, was the U-bolt loosened and then tightened with specified torque (4 nuts)?

Warning: Operate the wiper with the hood shut down. With the hood opened, you may risk to have your hand pinched by the wiper links.

Confirm that the wiper stays at the park position after turning ON the wiper motor switch to motor, then turning OFF the wiper switch.

After stop of the wiper motor, remove the key from the ignition.

Enter the wiper arm tightening torque value

Enter the wiper pivot tightening torque value

Sign off on the wiper arms and pivot adjustment
