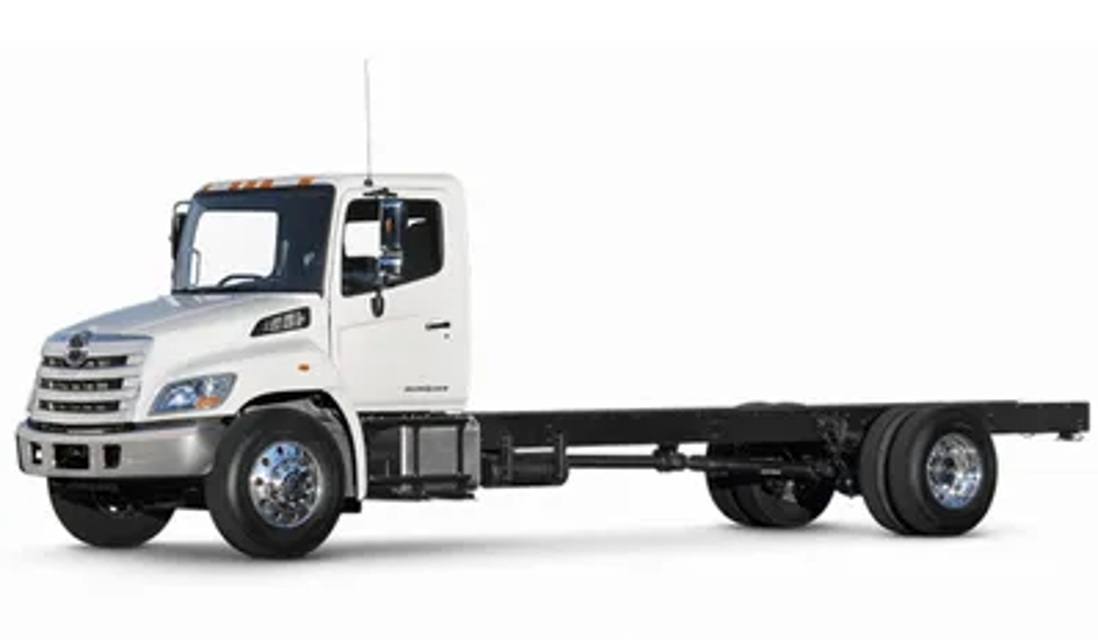

HINO Commercial Truck 258LP

Warning: Operate the wiper with the hood shut down. With the hood opened, you may risk to have your hand pinched by the wiper links.

Confirm that the wiper stays at the park position after turning ON the wiper motor switch to motor, then turning OFF the wiper switch.

After stop of the wiper motor, remove the key from the ignition.

Enter the wiper arm tightening torque value

Enter the wiper pivot tightening torque value

Sign off on the wiper arms and pivot adjustment

Engine oil inspection, oil supply and discharge

Cooling water inspection, water supply and discharge

Transmission oil inspection, oil supply and discharge (Special care is needed when installing P.T.O.)

Differential oil inspection, oil supply and discharge (Care is needed when spare tire is mounted on the rear overhang.)

Grease up (Special care is needed when shifting the fuel tank on vehicles.)

Battery liquid inspection, water supply and discharge.

Warning: Ensure the vehicle is parked, the parking brake is applied, and wheel chocks are placed at the front or rear tires.

Engine stopped and tail pipe cooled adequately?

Caution: Be careful as the tail pipe installation location is at a high position.

Did any foreign matter drop inside the tail pipe?

If yes, contact a Hino dealer to have the foreign matter removed by taking off the lower tail pipe.

Clamp temporarily attached at No.2 tail pipe without tightening?

No. 1 tail pipe inserted inside No.2 tail pipe until it touches the shoulder on the inside of the No. 2 tail pipe?

Caution: Ensure the mouth of No.1 tail pipe is directed away from body or equipment.

Warning: This maintenance check requires trained personnel with PPE!

Identify harmful defects such as breakage, crush, perforation, etc.

Specify the position of the defect on the nylon tube

Cutting face of the nylon tube is smooth without any burr and that the cutting face is 90º±5º to the axis of the nylon tube

Wind the inserting margin taping according to the following table. (In the same way as in the case of one-touch type connector )

Remount the connector according to the dismounting and remounting procedures of the nylon tube.

Securely fix the repair connector with a clamp to the nylon tube protected with corrugated tube existing around it.

If corrugated tube does not exist around it, add the corrugated tube.

If repair work is difficult to carry out for the reason of layout or for the reason of influencing on the external appearance such as on the air tank or that the tube is relatively short and its replacement can be done easily, replace the nylon tube with a new one.

Warning: This maintenance check requires trained personnel with PPE!

Is there sufficient working space for dismounting and mounting the air dryer?

If there is not sufficient space, clear the area before proceeding

Air dryer successfully dismounted?

Desiccant inspected and in good condition?

Choose the type of service done

Air dryer successfully mounted?

Sign off on the air dryer desiccant maintenance
