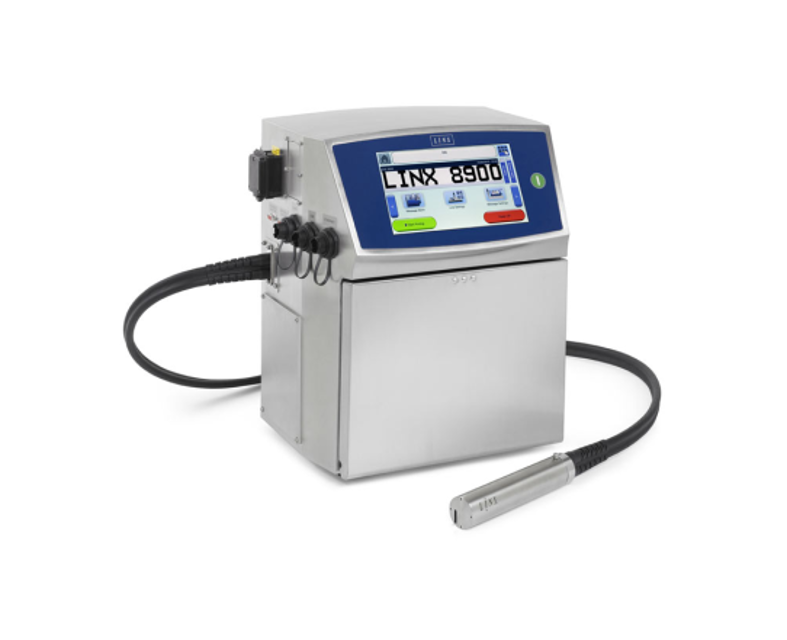

Linx Printing Technologies Printer 8900IP55

Examine Weekly for build-up of dust or debris, but daily in dusty or contaminated conditions.

Clean or replace the air filter

Clean the air filter every week. If the printer operates in dirty conditions, you must clean the filter every day. You must replace the air filter when a new service module is fitted.

To clean or replace the filter:

1 Loosen the thumbscrews and remove the access panel on the right side of the printer.

2 Use the nylon tab to remove the filter element. (Pressure can be necessary to release the filter from the housing.)

3 Gently hit the filter to remove dirt, or use an air line to blow air through the filter in the opposite direction to the normal flow.

4 Check that the filter is clean and no dirt is visible in the filter housing. Replace the filter if you cannot clean it.

WARNING: HAZARDOUS SUBSTANCES. MANY OF THE INKS USED WITH THIS PRINTER ARE SOLVENT-BASED AND CAN BE HAZARDOUS. THEY ARE HIGHLY FLAMMABLE, AND THE VAPOUR OR SPRAY CAN BE IRRITATING TO THE EYES AND RESPIRATORY SYSTEM.

YOU MUST WEAR SAFETY GLASSES AND SOLVENT-RESISTANT PROTECTIVE GLOVES WHEN YOU HANDLE INKS AND SOLVENTS, WHEN YOU WORK ON THE PRINTER, AND WHEN YOU CLEAN IT.

IF YOU IGNORE THIS SAFETY WARNING, YOU COULD EXPERIENCE SEVERE IRRITATION AND TEMPORARY (REVERSIBLE) DAMAGE TO THE EYES, AND NON-ALLERGIC CONTACT DERMATITIS.

WARNING: FLAMMABLE LIQUIDS. THE INKS AND SOLVENTS USED WITH THIS PRINTER ARE HIGHLY FLAMMABLE.

KEEP INKS AND SOLVENTS AWAY FROM SOURCES OF IGNITION. DO NOT SMOKE OR USE OPEN FLAMES NEAR THE PRINTER, OR INK AND SOLVENT STORAGE CONTAINERS. USE INKS AND SOLVENTS, AND OPERATE THE PRINTER, IN AN AREA WITH GOOD VENTILATION.

THERE IS A RISK OF FIRE OR EXPLOSION IF THIS SAFETY WARNING IS IGNORED.

Safety glasses and solvent-resistant protective gloves worn?

Percentage of fluid that remains in the printer ink cartridge

Percentage of fluid that remains in the printer solvent cartridge

NOTE: Before you perform a Nozzle Flush, refer to the instructions below or on the Main Menu screen (Home > Main Menu > Help > Nozzle Flush).

The printer automatically cleans the printhead, but if necessary you can use the Nozzle Flush sequence to clean the nozzle of dry ink that can obstruct or stop the ink jet.

A Nozzle Flush uses the pump pressure to create a flow of solvent through the nozzle. The solvent returns to the ink system through the gutter.

NOTE: The Nozzle Flush option is not available unless the jet is stopped. Touch the Stop Jet button on the Home screen to stop the jet.

1 Make sure that the printer status is ‘Idle’.

2 Put a container under the printhead to collect solvent.

3 On the Maintenance screen, touch the Nozzle Flush button to display the Nozzle Flush screen.

WARNING: HAZARDOUS SUBSTANCES. MANY OF THE INKS USED WITH THIS PRINTER ARE SOLVENT-BASED AND CAN BE HAZARDOUS. THEY ARE HIGHLY FLAMMABLE, AND THE VAPOUR OR SPRAY CAN BE IRRITATING TO THE EYES AND RESPIRATORY SYSTEM.

YOU MUST WEAR SAFETY GLASSES AND SOLVENT-RESISTANT PROTECTIVE GLOVES WHEN YOU HANDLE INKS AND SOLVENTS, WHEN YOU WORK ON THE PRINTER, AND WHEN YOU CLEAN IT.

IF YOU IGNORE THIS SAFETY WARNING, YOU COULD EXPERIENCE SEVERE IRRITATION AND TEMPORARY (REVERSIBLE) DAMAGE TO THE EYES, AND NON-ALLERGIC CONTACT DERMATITIS.

WARNING: FLAMMABLE LIQUIDS. THE INKS AND SOLVENTS USED WITH THIS PRINTER ARE HIGHLY FLAMMABLE.

KEEP INKS AND SOLVENTS AWAY FROM SOURCES OF IGNITION. DO NOT SMOKE OR USE OPEN FLAMES NEAR THE PRINTER, OR INK AND SOLVENT STORAGE CONTAINERS. USE INKS AND SOLVENTS, AND OPERATE THE PRINTER, IN AN AREA WITH GOOD VENTILATION.

THERE IS A RISK OF FIRE OR EXPLOSION IF THIS SAFETY WARNING IS IGNORED.

Use a clean, soft, lint-free cloth and the same solvent type that is used in the printer to clean ink spills from the printer cabinet. Observe the safety precautions when you handle the solvent.

Do not use abrasive materials, which can damage the equipment.

Touch screen display - Clean as necessary

Service module - Replace when the printer displays the “3.40 Service Module Requires Replacement” Warning message.

When the service module replacement time reaches zero, the printer displays the “3.40 Service Module Requires Replacement” Warning screen.
