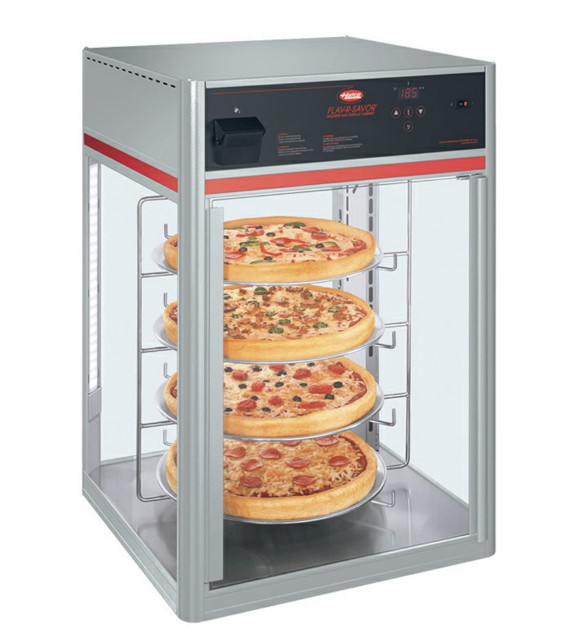

Hatco Food Cabinet FSDT-1

Turn off the unit and unplug the power cord

Perform the Draining the Water Reservoir procedure after the unit has cooled down

Fill the water reservoir with a mixture

Set both the air temperature and humidity to their highest settings

Turn off the unit and unplug the power cord

Locate the valve inside the cabinet on the underside of the ceiling sheet

Position a one gallon (four liter) container under the valve

Turn the valve handle to the vertical position to open

Return the valve handle to the closed position once the reservoir is empty

Lift the glass panel out of the bottom channel of the cabinet.

Pull the lower edge away from the cabinet.

Carefully lower the glass until the top clears the cabinet.

Position the glass panel with the top edge under the top cabinet lip, and raise the glass until it clears the bottom channel of the cabinet.

Move the bottom of the glass towards the cabinet until the glass rests against the cabinet frame.

Carefully lower the glass until it rests in the bottom channel of the cabinet.

Setting the De-Liming Detection Mode

Press and hold either the key or key for four seconds

Is the de-liming detection mode enabled?

Is 'DE-L' displayed on the CABINET TEMPERATURE display when there is excessive lime build-up?

Describe any issues encountered during the procedure

Turn OFF power switch, unplug power cord, and allow unit to cool

Ensure unit is not submerged or saturated with water

Verify use of Genuine Hatco Replacement Parts for service

Turn off the unit, unplug the power cord, and allow the unit to cool

Wipe down all interior and exterior metal surfaces with a damp cloth

Remove stubborn stains with a non-abrasive cleaner
