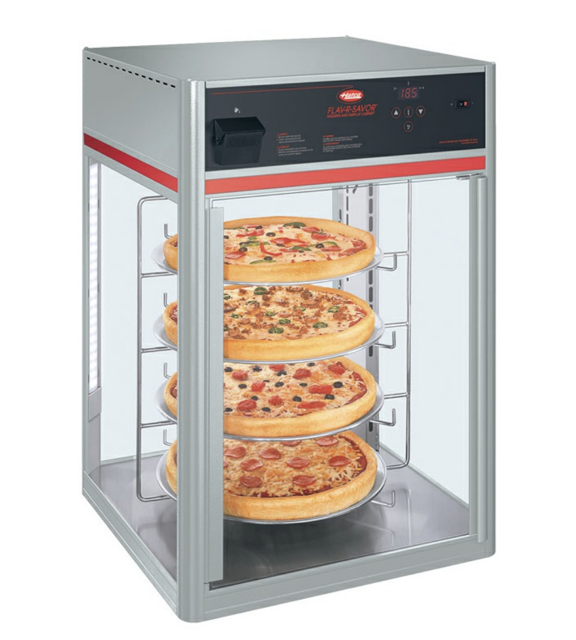

Hatco Food Cabinet FSDT-1X

Lift the glass panel out of the bottom channel of the cabinet

Pull the lower edge away from the cabinet

Carefully lower the glass until the top clears the cabinet

Position the glass panel with the top edge under the top cabinet lip, and raise the glass until it clears the bottom channel of the cabinet

Move the bottom of the glass towards the cabinet until the glass rests against the cabinet frame

Carefully lower the glass until it rests in the bottom channel of the cabinet

Turn off the unit and unplug the power cord

Perform the Draining the Water Reservoir procedure after cooling

Fill the water reservoir with a mixture of 75% water and 25% white vinegar

Running the Unit with Deliming Solution

Set both the air temperature and humidity to their highest settings

Turn OFF power switch, unplug power cord, and allow unit to cool

Ensure unit is not submerged or saturated with water

Verify use of Genuine Hatco Replacement Parts for service

Turn off the unit, unplug the power cord, and allow the unit to cool

Wipe down all interior and exterior metal surfaces with a damp cloth

Remove stubborn stains with a non-abrasive cleaner

Setting the De-Liming Detection Mode

Press and hold either the key or key for four seconds

Check the CABINET TEMPERATURE display for de-liming detection mode status

Pull the LED light strip from the clips securing it to the corner

Pull the top of the LED strip down and out of the LED housing to expose the wire connectors

Disconnect the wire connectors from the LED light strip being replaced

Installation of New LED Light Strip
