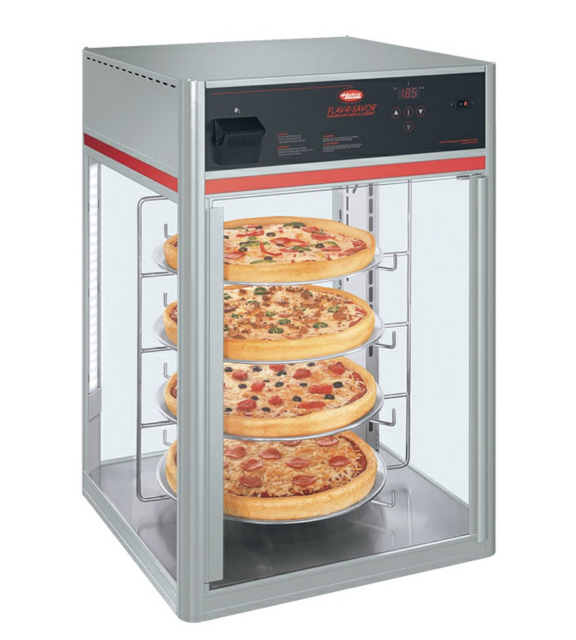

Hatco Food Cabinet FSD-2

Turn off the unit and unplug the power cord

Perform the Draining the Water Reservoir procedure

Fill the water reservoir with a mixture

Set both the air temperature and humidity to their highest settings

Pull the LED light strip from the clips securing it to the corner

Pull the top of the LED strip down and out of the LED housing to expose the wire connectors

Disconnect the wire connectors from the LED light strip being replaced

Installation of New LED Light Strip

Lift the glass panel out of the bottom channel of the cabinet

Pull the lower edge away from the cabinet

Carefully lower the glass until the top clears the cabinet

Position the glass panel with the top edge under the top cabinet lip, and raise the glass until it clears the bottom channel of the cabinet

Move the bottom of the glass towards the cabinet until the glass rests against the cabinet frame

Carefully lower the glass until it rests in the bottom channel of the cabinet

Select the model of the rotating rack being removed

Pull down the spring-mounted coupling to compress

Tip the rack until the rack shaft clears the motor shaft

Insert the rack into the cabinet and place the rack bottom point in the dimple located at the center of the cabinet floor

Pull down the spring-mounted coupling to compress

Tip the rack to line up the rack shaft with the motor shaft pin

Locate the valve inside the cabinet on the underside of the ceiling sheet

Position a one gallon (four liter) container under the valve

Turn the valve handle from the horizontal position (closed) to the vertical position (open) to drain the reservoir

Once the reservoir is empty, return the valve handle to the closed position
