Hatco Decorative Heat Lamp DLH-775-RR

Ensure the lamp is at the proper height before tightening set screws.

Slide the stem up or down to the desired length.

Tighten set screws securely (at least 12 ft-lbs.) to avoid electric shock hazard.

Ensure screws penetrate paint and contact bare metal for grounding.

Use the included threadlocker to secure the stem length.

Tighten set screws securely (at least 12 ft-lbs.).

Read all safety messages in the Important Safety Information section before operating the equipment.

Move the I/O (on/off) Switch to the I (on) position.

Move the I/O (on/off) Switch to the O (off) position.

Operating Retractable ‘R’ and ‘RT’ Units

Is the power turned off at the fused disconnect switch/circuit breaker?

Has the unit cooled down completely?

Wipe down the lamp shade with a clean, soft, water-dampened cloth.

Describe any stubborn stains and the mild, non-abrasive cleanser used to remove them.

Was a non-abrasive cleaner used?

Move the I/O (on/off) Switch to the O (off) position.

Has the bulb cooled completely?

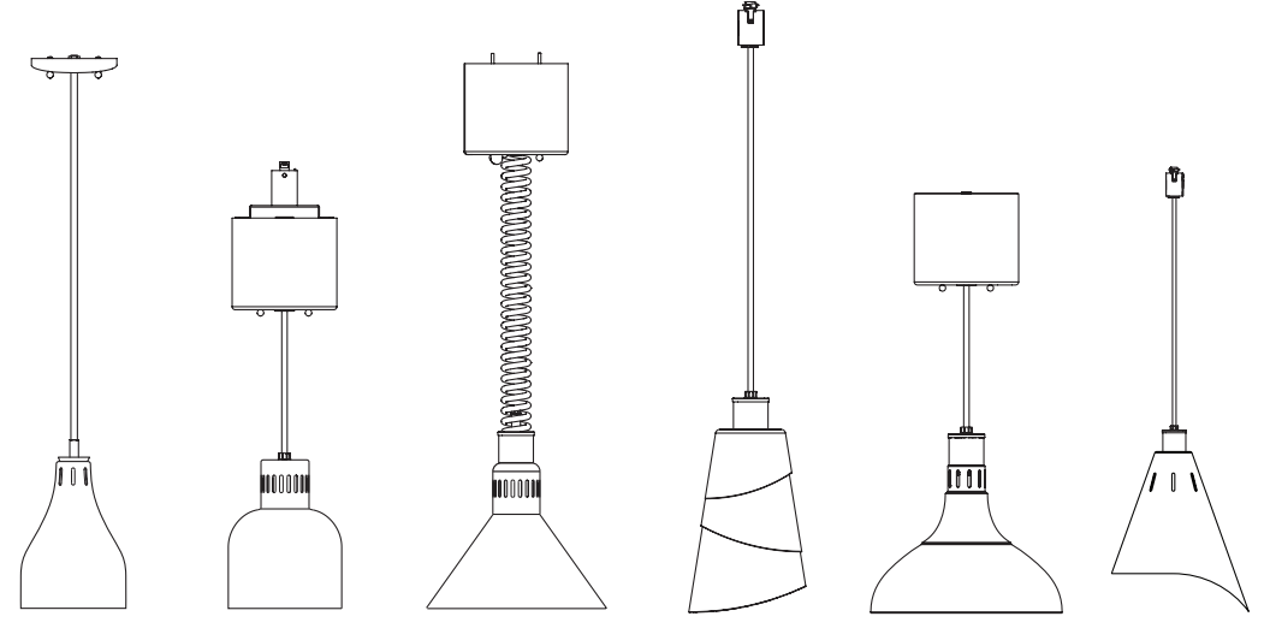

Identify the type of Decorative Lamp

Is the bulb to be replaced rated at 250 W?

Is the bulb to be replaced rated at 375 W?

Unscrew the bulb from the unit.

Replace with a new bulb of the correct wattage.
