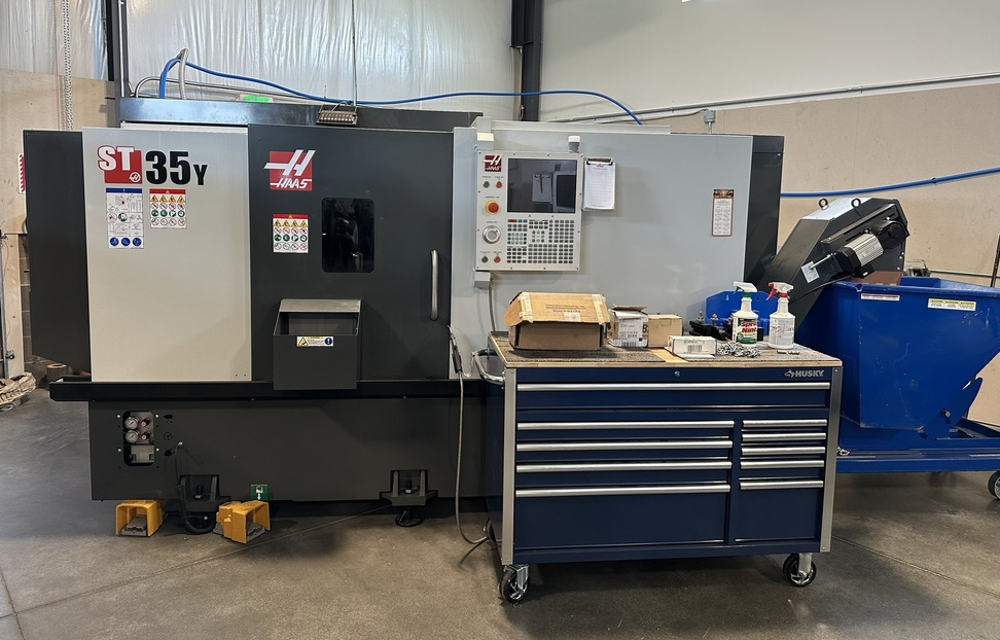

Haas Automation Lathe ST-35Y

Warning: Never change tools while the machine has the spindle turning or while the axis are moving!

Check if the Aloris Single Station Tool Post is properly equipped

Check if individual tools are set in their own respective holders

Check if the quick change system is functioning properly

Check if the tool-holder is firmly clamped against the tool post after changing tools

Sign off on the Aloris Tool Post Maintenance

CAUTION: The chuck key comes equipped with a spring on the end to prevent accidentally starting the spindle with the chuck key engaged to the chuck. DO NOT REMOVE THE SPRING FROM THE KEY!!!!! Starting the spindle with the chuck key engaged will lead to extensive machine damage and potential physical harm for the operator!

Check if the chuck key is properly equipped with a spring

Check if the chuck jaws are moving closer to the chuck center when the chuck key is rotated in a clockwise direction

Check if the chuck jaws are moving away from the chuck center when the chuck key is rotated in a counter-clockwise direction

Describe any issues found during the check

Sign off on the 3 Jaw Scroll Jaw Chuck Maintenance

The TL series lathes are equipped with grease fittings rather than an oil lube system to provide surface to surface lubrication for all contact points on the machine.

The linear ways, the ball screws, and the tailstock are all equipped with grease fittings, and they should be lubricated weekly to insure consistent performance and accuracy of your machine.

For the lubrication points shown above, a general purpose lithium grease is required with enough volume to push grease out from the front and back of the linear ways, and from around the ball screw bearing housings.;
