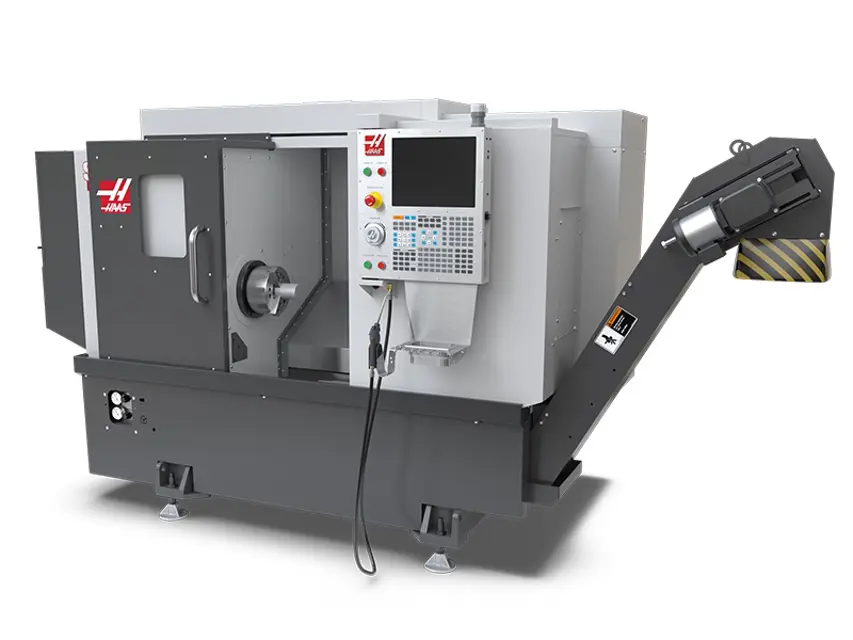

Haas Automation Lathe ST 10Y
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Haas Automation Lathe ST 10Y
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Haas Automation Lathe ST 10Y
Create an account to install this asset package.
Maintenance Plans for Haas Automation Lathe Model ST 10Y
Integrate maintenance plans directly into your work orders in MaintainX.
6 Monthly Lathe Maintenance
- Inspect the axis lubrication hoses for cracking
- Perform an Axis Lubrication Test
- Inspect the oil skimmer pickup tube
- Inspect the pneumatic hoses for cracking
- Check probe calibration
- Completely clean the coolant tank and replace the coolant (Standard Coolant System)
- Verify coolant refill is operating correctly (Standard Coolant System)
- Perform Spindle Lubrication Test
- Inspect Chuck Multi-Point
6 Monthly HP Coolant Maintenance
Clean the HPC-300 / 1K Pump Filter
Inspect the hoses for cracking
Verify the Auto Clean system is operating correctly
Sign off on the HP Coolant Maintenance
6 Monthly Auxiliary Filter Maintenance
Replace the filter bag
Check the Gauge
Inspect the hoses for cracking
Sign off on the filter maintenance
1 Yearly Lathe Maintenance
Replace the oil of gearbox
Clean the Air Purge Solenoid
Clean the Chuck
Check belt tension (Haas Barfeeder)
Sign off on the lathe maintenance
1 Weekly Lathe Maintenance
Inspect the spindle air regulator pressure
Inspect the coolant level
Inspect the coolant concentration
Upload the filled Mixture - Maintenance Log sheet
Clean chips from the coolant collector
Grease the chuck jaws
Grease the bar feed push rod and bushing
Sign off on the weekly lathe maintenance
