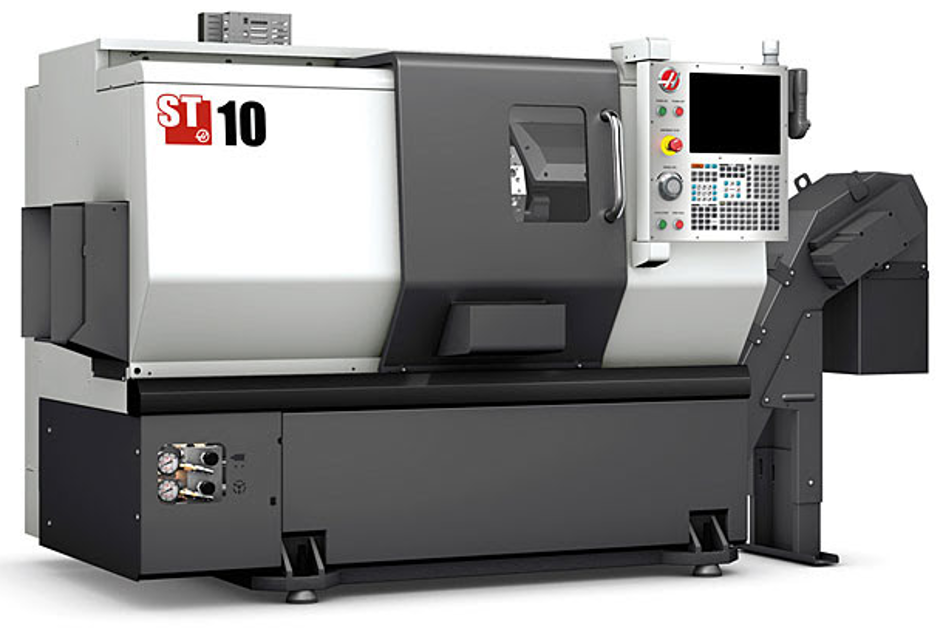

Haas Automation Lathe ST-10

Warning: Never change tools while the machine has the spindle turning or while the axis are moving!

Is the Aloris Single Station Tool Post properly installed?

Is the handle able to swing in a counterclockwise direction to release the current tool?

Can the tool-holder be easily pulled up and off of the Aloris dovetail?

Can the next tool be easily slid onto the Aloris dovetail?

Does the lever swing till clockwise to firmly clamp the tool-holder against the tool post?

Sign off on the Aloris Tool Post Maintenance

CAUTION: The chuck key comes equipped with a spring on the end to prevent accidentally starting the spindle with the chuck key engaged to the chuck. DO NOT REMOVE THE SPRING FROM THE KEY!!!!! Starting the spindle with the chuck key engaged will lead to extensive machine damage and potential physical harm for the operator!

Check if the chuck key is rotating in a clockwise direction to draw the jaws of the chuck closer to the chuck center

Check if the chuck key is rotating in a counter-clockwise direction to move the jaws away from the chuck center

Choose the configuration of the chuck jaws and part holding

Sign off on the 3 Jaw Scroll Jaw Chuck Maintenance

Warning: This procedure requires trained personnel with PPE!

Are all grease fittings present?

Enter the volume of lithium grease used

Is grease coming out from the front and back of the linear ways?

Is grease coming out from around the ball screw bearing housings?

Sign off on the daily lathe grease points
