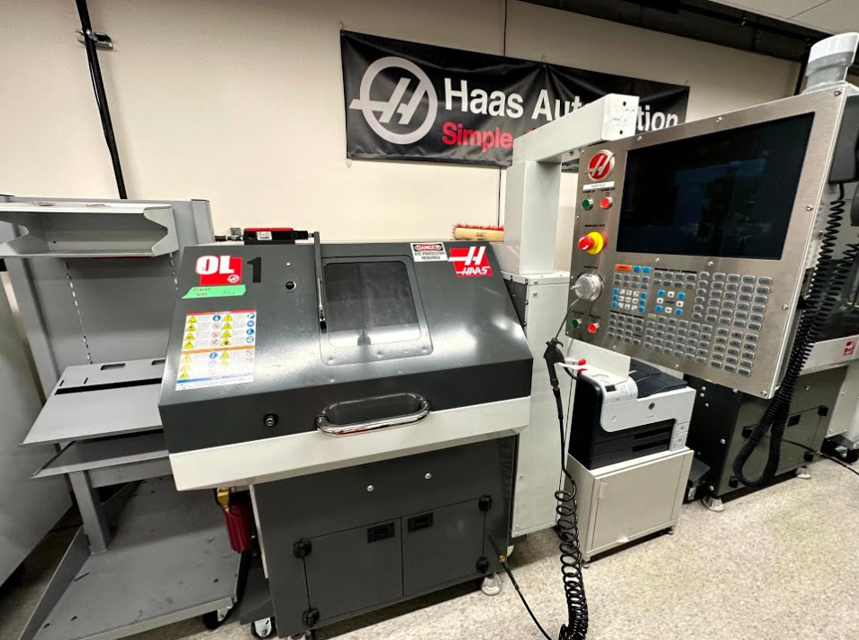

Haas Automation Lathe OL-1

Warning: Never change tools while the machine has the spindle turning or while the axis are moving!

Is the machine spindle stopped?

Swing the handle in a counterclockwise direction to release the current tool

Pull the tool-holder up and off of the Aloris dovetail

Slide on the next tool onto the Aloris dovetail

Swing the lever till clockwise to firmly clamp the tool-holder against the tool post

Sign off on the tool change procedure

CAUTION: The chuck key comes equipped with a spring on the end to prevent accidentally starting the spindle with the chuck key engaged to the chuck. DO NOT REMOVE THE SPRING FROM THE KEY!!!!! Starting the spindle with the chuck key engaged will lead to extensive machine damage and potential physical harm for the operator!

Check if the chuck key spring is intact

Is the chuck key rotating in a clockwise direction?

Is the chuck key rotating in a counter-clockwise direction?

Choose the configuration of the chuck jaws

Sign off on the 3 Jaw Scroll Jaw Chuck Maintenance

Warning: This procedure requires trained personnel with PPE!

If machine is not operational, report the issues to the maintenance team and stop the procedure

Issues found during the lubrication process

Sign off on the daily lathe grease points
