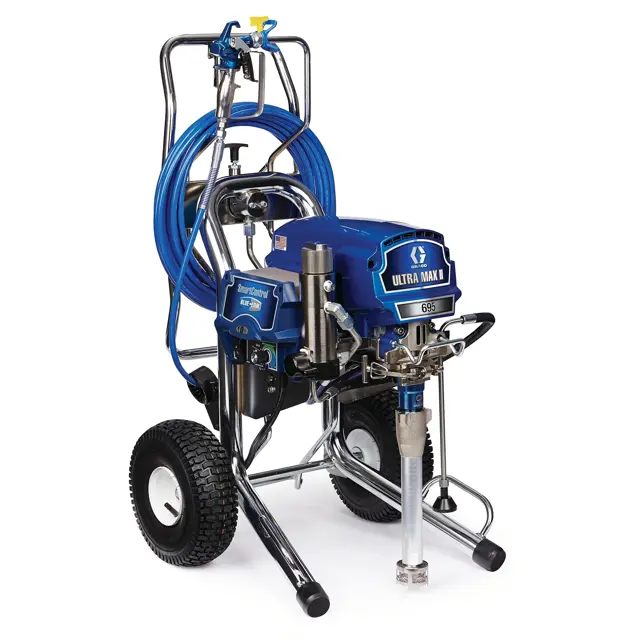

Graco Electric Airless Sprayer Ultra Max II 695 230 AP ProContractor

1. Perform Pressure Relief Procedure, page 18.

2. Remove Spray Tip Guard and Spray Tip. For additional information, see separate Spray Gun manual.

3. Remove Suction Tube and Drain Tube from paint; wipe excess paint off outside of Suction Tube.

4. Place Suction Tube in appropriate flushing fluid. Place Drain Tube in waste pail.

5. To flush Drain Tube and pump turn Prime/Spray Valve down to PRIME position.

6. Turn pressure control to Prime/Slow and turn ON/OFF switch to ON position to start the motor. Flushing fluid will flow up the Suction Tube and out the Drain Tube into the waste pail. Allow flushing fluid to flow out of Drain Tube for 5 seconds.

7. Turn Pressure Control Knob to OFF setting (all the way counterclockwise).

Warning: Ensure the Spray Tip is fully seated and pushed all the way into the Spray Tip Guard.

Rotate Spray Tip to UNCLOG position

Trigger Spray Gun at waste area to clear clog

Note: If Spray Tip is difficult to rotate when turning to the UNCLOG position, perform Pressure Relief Procedure, then turn Prime/Spray Valve horizontal to SPRAY position and repeat step 1.

Rotate Spray Tip back to SPRAY position

Disengage Trigger Lock and continue spraying

Activity: Throat packing adjustment

Interval: As necessary based on usage

Pump packing begins to leak after extended use

If leakage is observed, tighten packing nut down until leakage stops or lessens.

Enter the number of gallons of operation before a repacking is required

Packing nut tightened without 0-ring removal?

Sign off on the sprayer throat packing adjustment

Turn sprayer OFF and disconnect power

Remove black battery cover with a philips screwdriver

Slide battery out of the holder, to the left

Replace battery with a new CR2032 battery

Place the battery cover back on the unit

Hook the clip under the control board. NOTE: The cover should not move

Tighten the screw back into place on the battery cover

Close and screw the control box cover back on the unit

Inspect/clean fluid inlet strainer

Inspect motor shield vents for blockage

Fill TSL by adding through TSL fill point

Sign off on the daily sprayer inspection
