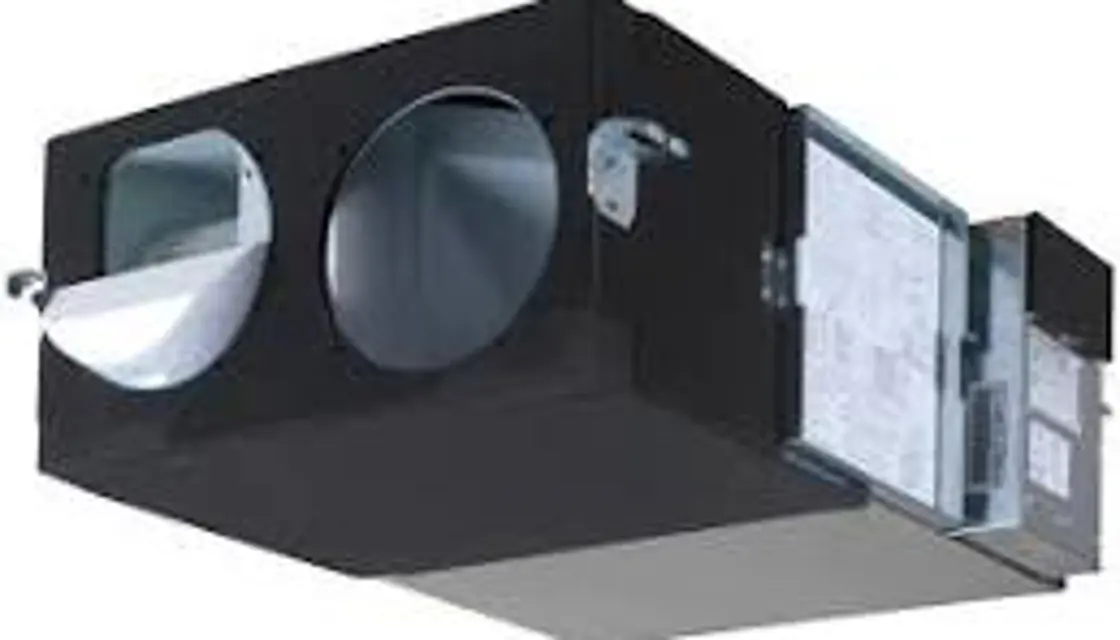

Daikin Heat Reclaim Ventilation Unit VAM350FC

Be sure to turn off the OPERATION switch and disconnect the power.

Only a qualified service person is allowed to perform maintenance.

During operation, never check or clean the HRV. It may cause electrical shock and it is very dangerous to touch the rotating part.

At least once every two years (for general office use),(clean more frequently if necessary.)

1 Go into the ceiling through the inspection hole, remove binding metal of maintenance cover and take it off.

(Refer to figure 3 (A = Models VAM350~1000F, B = Models VAM1500~2000F))

WARNING: Be sure to turn off the OPERATION switch and disconnect the power.

Only a qualified service person is allowed to perform maintenance.

During operation, never check or clean the HRV. It may cause electrical shock and it is very dangerous to touch the rotating part.

Cleaning frequency: At least once every two years (for general office use),(clean more frequently if necessary.)

Use a vacuum cleaner to remove dust and foreign objects on the surface of the heat exchange element.

Install the air filter securely in place.

Put the heat exchange element on the rail and insert it securely in place.

Install the maintenance cover securely in place.

CAUTION: Never wash the heat exchanger element with water;
