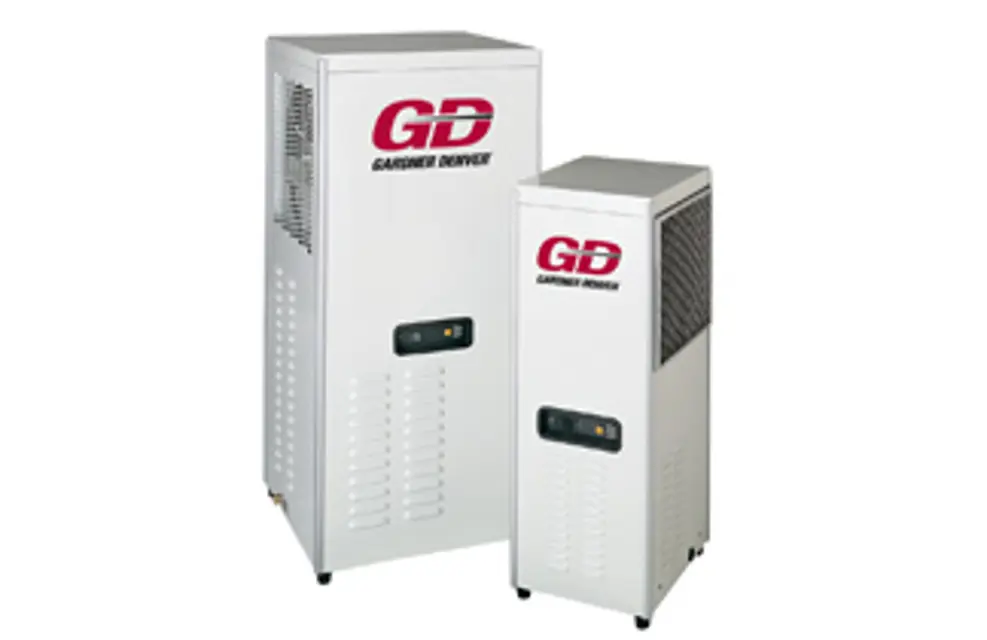

Gardner Denver High Inlet Temperature Refrigerated Compressed Air Dryers RHT125

• Check daily to be sure automatic drain is discharging.

• Replace drain mechanism yearly.

A. Shut-off compressed air supply to the dryer and depressurize.

C. Remove two screws holding side panel then remove side panel by sliding upwards.

D. Disconnect drain tube from bulkhead fitting in cabinet base. To remove, press the plastic collar in, toward the fitting, while pulling the tube out of the fitting.

E. Remove bowl - push bowl up, turn 1/8th turn to your left, and pull bowl straight down.

F. Remove drain tube fitting from bottom of bowl.

G. Remove old drain mechanism by turning knurled fitting to the right (clockwise) and remove.

CAUTION! DRYER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.

Inlet strainer - clean inlet strainer monthly or more often if rapid clogging occurs.

A. Shut-off compressed air supply to the strainer and depressurize.

B. Remove screen and clean or replace.

CAUTION! DRYER IS A PRESSURE CONTAINING DEVICE. DEPRESSURIZE BEFORE SERVICING.

Ambient air filter - Clean accumulated dust and dirt from ambient air filter monthly or more often if air flow across the condenser is impeded.

Remove ambient air filter by sliding upwards

Wash with soap and water and allow to dry before reinstalling

NOTE: Do not use solvents to clean ambient air filter.

Sign off on the air filter cleaning

Replace separator/filter element yearly or more often if pressure drop across the dryer is excessive.

A. Shut-off compressed air supply to the dryer and depressurize.

C. Remove two screws holding side panel and remove side panel by sliding upwards.

D. Disconnect drain tube from bulkhead fitting in cabinet base. To remove, press the plastic collar in, toward the fitting, while pulling the tube out of the fitting.

E. Remove bowl - push bowl up, turn bowl 1/8th turn to your left, and pull straight down.
