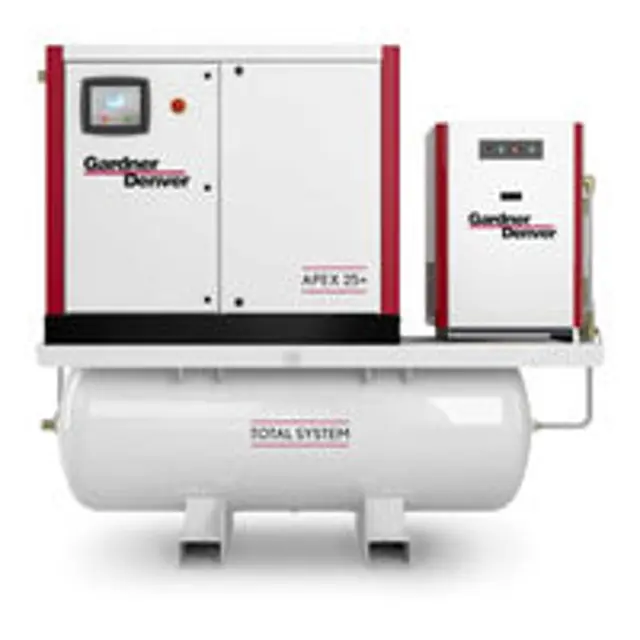

Gardner Denver Compressor APEX VS 18-22A 22KW

Unit loads and unloads properly

Control panel display advisory text messages

Remove the intake air grill panel from the package by first removing the top-located screws and washers.

Remove the vfd filter by sliding out sideways through the provided slot.

Is fouling evident on the filter?

If fouling is evident, cleanse the filter media gently with water – do not remove from the aluminum frame.

Replace the filter media if media is heavily fouled or ruptured.

Replace the filter and the intake air grill panel in the reverse order.

Sign off on the filter maintenance

Safety First! Disconnect, lockout and tagout power supply to the compressor package.

Automatic grease relief fittings located and their spring loaded covers are operational?

Locate the grease fittings provided at each motor top end.

Grease fittings cleaned and greased until excess grease starts draining from the companion grease relief fitting?

Make sure that the grease volume does not exceed the motor manufacturer’s recommendation by a factor of approximately 2X.

Excess grease expelled by the automatic grease relief fittings wiped off?

Sign off on the motor lubrication

DANGER: Before inspecting the pressure relief valve, release air pressure, lockout and tagout the power supply to the compressor package. Failure to release pressure or properly disconnect the power may result in personal injury or death.

CAUTION: Never paint, lubricate or alter a relief valve. Do not plug vent or restrict.

DANGER: Operation of the unit with improper relief valve setting can result in severe personal injury or machine damage. Ensure properly set valves are installed and maintained.

Pressure Relief Valve Check During Operation

The pressure relief valve has no user-serviceable or repairable components. However, it should be tested for proper operation at least once every year. To test the pressure relief valve: Raise the system operating pressure to its normal level. Pull the stem ring to open valve and let it vent for a few seconds. Release the stem ring to close the valve.

Change oil separator, see “Removal of Oil Separator for Inspection or Replacement”, Section 5, page 53 for further details (or when 8 psid pressure differential across the element).

OIL FILTER, AIR/OIL SEPARATOR ELEMENT or OIL SCAVENGE RETURN ORIFICE INSPECTION PROCEDURE:

Clean the gasket seating surface of the head.

Loosen latches fastening end cover to the filter housing

Visually inspect the filter element for flaws

Inspect the filter element for contamination

Enter the reading from the vacuum sensor

Insert the element into the air filter housing

Replace the air filter housing cover in place
