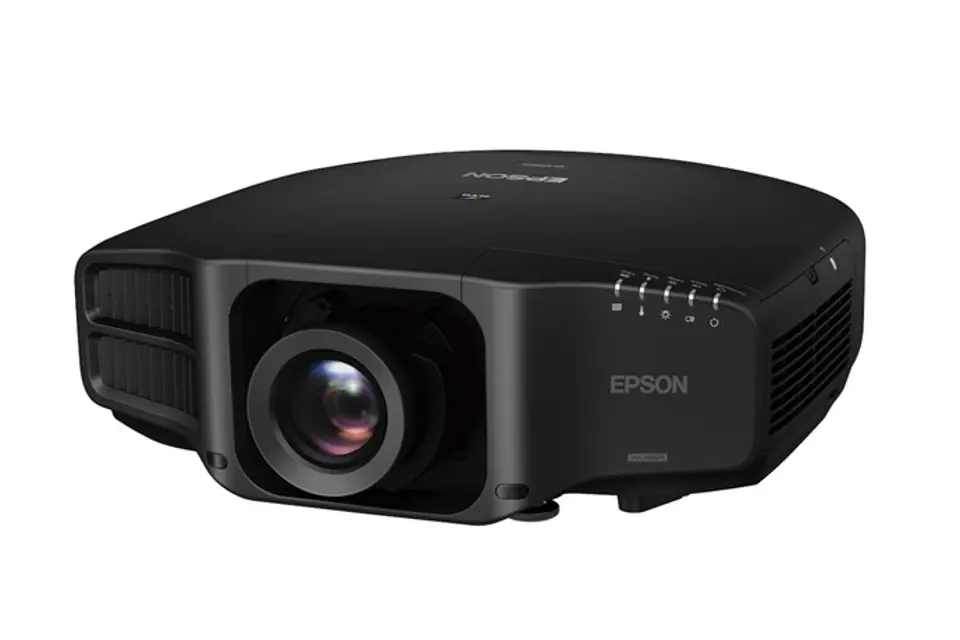

Epson Multimedia Projector EB-G7905U

Create an account to install this asset package.

Maintenance Plans for Epson Multimedia Projector Model EB-G7905U

Integrate maintenance plans directly into your work orders in MaintainX.

15000 Hourly Air Filter Cleaning

Warning: Do not rinse the air filter in water. Do not use detergents or solvents.

Warning: When using a brush for cleaning, use one with long soft bristles, and brush it lightly.

Warning: If the air filter is hit too hard, it may become unusable due to deformities and cracks.

Projector turned off and power cord disconnected?

Air filter cover opened?

Air filter removed?

Dust shaken off from the air filter?

Remaining dust removed using a vacuum cleaner?

Air filter replaced and clicked into place?

Run this procedure

Projector Air Filter Replacement

Warning: Ensure the projector's power is off and the power cord is disconnected before starting.

Power cord disconnected?

Open the air filter cover by sliding the operation knob.

Air filter cover opened?

Remove the air filter by gripping the tab in the center and pulling it straight out.

Air filter removed?

Install the new air filter. Press until it clicks into place.

New air filter installed?

Close the air filter cover.

Run this procedure

Projector Parts Cleaning

You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate.

Attention!

Do not rub the lens with harsh materials or subject the lens to shocks, as it can easily become damaged.

Caution!

When cleaning, unplug the power cable from the electric outlet. Otherwise, it could cause an electric shock.

Cleaning the Projector's Surface

Clean the projector's surface by wiping it gently with a soft cloth.

If the projector is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent, and then firmly wring the cloth dry before using it to wipe the projector's surface.

Attention!

Run this procedure

Projector Lamp Replacement

Warning: Lamp replacement requires careful handling due to risk of explosion and injury from glass shards.

Is the power indicator flashing blue and the lamp indicator flashing orange?

Has the projected image gotten darker or started to deteriorate?

Warning: Do not repeatedly turn off the power and immediately back on. This may shorten the lamp's operating life.

Warning: Always use genuine EPSON spare lamps. Non-genuine lamps may affect projection quality and safety.

Warning: Never disassemble or remodel the lamp. It could cause a fire, electric shock, or an accident.

Caution: Wait until the lamp has cooled down before removing the lamp cover. It takes about one hour after the power has been turned off for the lamp to be cool enough.

Did you disconnect the power cord?

Did you remove the projector's lamp cover?

Run this procedure
