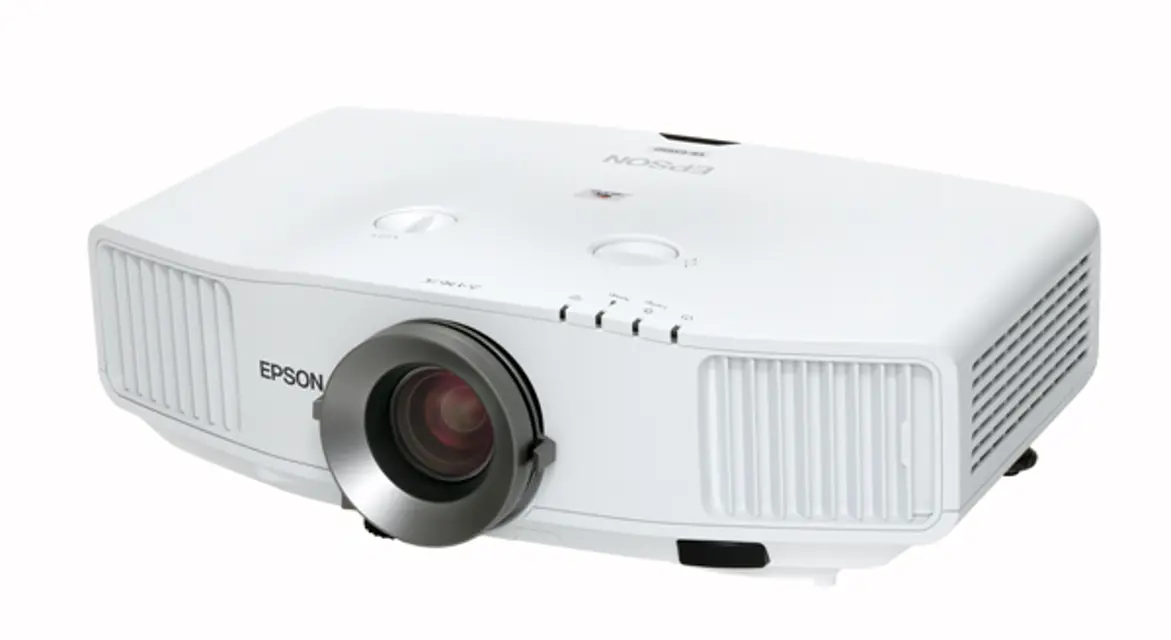

Epson Multimedia Projector EB-G5450WU

Warning: Lamp replacement requires careful handling. Ensure you have read and understood the procedure before starting.

Is the 'Replace the lamp' message displayed on the projection screen?

Is the lamp indicator flashing orange?

Has the projected image gotten darker or started to deteriorate?

Warning: Do not turn the projector on immediately after turning it off. This may shorten the life of the lamp.

Warning: If the lamp is used beyond the replacement period, it may explode. Replace the lamp as soon as the replacement message appears.

Warning: Always keep a replacement lamp on hand.

Warning: When replacing the lamp, assume it may be broken. Stand to the side of the lamp cover, not underneath it.

Warning: Never disassemble or remodel the lamp. This could cause a fire, electric shock, or an accident.

Warning: Do not use sprays containing a flammable gas to clean the projector. This could cause a fire due to the high temperature of the lamp inside the unit.

Cleaning the Projector's Surface

Is the projector's surface clean?

If the projector is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent and then firmly wring the cloth dry before using it to wipe the projector's surface.

Attention: Do not use volatile substances such as wax, alcohol or thinner to clean the projector's surface. The quality of the case may change or become discolored.

Is the projector's surface clean after using the moistened cloth?

Sign off on the projector surface cleaning

Warning: Ensure the projector's power is off and the power cable is disconnected before starting.

Is the message displayed even though the air filter has been cleaned?

Did you remove the air filter cover?

Did you insert the new air filter into the air filter cover?

Did you press the air filter until it clicked into place?

Dispose of used air filters properly in accordance with your local regulations.

Warning: Do not use sprays containing a flammable gas to remove dirt or dust. This could cause a fire due to the high temperature of the lamp inside the unit.

Warning: If dust collects on the air filter, it can cause the internal temperature of the projector to rise, leading to operational problems and shortening the optical engine's service life.

Warning: Do not rinse the air filter in water. Do not use detergents or solvents. When using a brush for cleaning, use one with long soft bristles and brush lightly.

Warning: If the air filter is hit too hard, it may become unusable due to deformities and cracks.

Turn off the projector's power and disconnect the power cable.

Tap the air filter four or five times to shake off the dust.

Remove any remaining dust on the air filter using a vacuum cleaner.

Warning: Do not use sprays containing a flammable gas to clean the projector. This could cause a fire due to the high temperature of the lamp inside the unit.

Is the projector dirty or is the quality of projected images deteriorating?

Use a commercially available cloth for cleaning glasses to gently wipe the lens. Did you complete this step?

Warning: Do not rub the lens with harsh materials or subject the lens to shocks as it can easily become damaged.

Sign off on the projector lens cleaning
