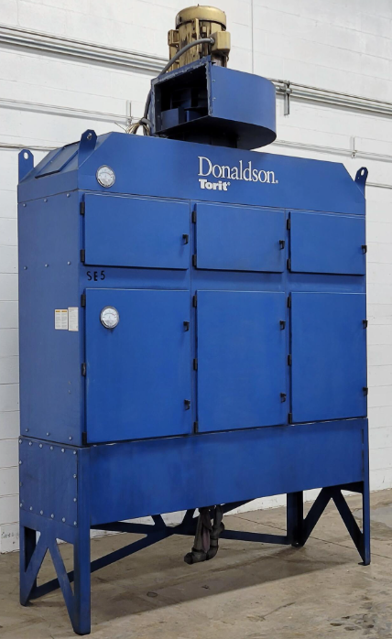

Donaldson Torit Mist Collector WSO 25-3

Suitable container placed under the P-Trap

Thread sealant used and pipe plug replaced

P-Trap refilled with suitable fluid

Place a suitable container under the screen cleanout valve, turn the collector OFF, close the P-Trap valve, then open the screen clean-out valve.

With the clean-out valve open, slowly open the P-Trap valve. This allows fluid still trapped in the hopper to drain.

NOTICE: A substantial amount of fluid may be trapped in the hopper and could exceed the container capacity. Open the P-Trap valve slowly.

Unscrew the screen cap and pull the screen out.

Screen and inside of the Y-strainer body cleaned and re-assembled?

Warning: This check requires trained personnel with PPE!

Physical condition of the collector is good

Damaged components to be repaired or replaced

HEPA or 95% DOP pressure drop is normal

Warning: Do not operate the WSO mist collector without the first-stage filter in place. Significant reduction in primary filter life can result.

First stage filter removed through the lower access door

First-stage screen cleaned by tapping it gently over an appropriate waste container

First-stage screen washed in an appropriate wash tank

First-stage filter cleaned by soaking in an appropriate wash tank

First-stage filter rinsed, dried, and re-installed

Sign off on the first stage filter maintenance
