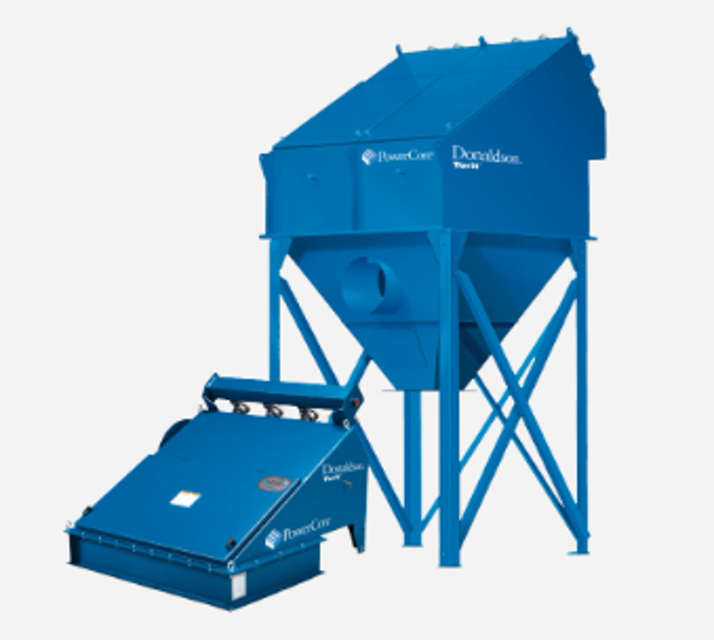

Donaldson Torit Dust Collector CPC-32

NOTICE: Do not set compressed-air pressure above 100-psig. Component damage can occur.

Check the compressed air components

Drain moisture following the manufacturer's instructions.

Is the compressed-air supply ON?

Check the cleaning valves for leaks

Check the solenoid valves for leaks

Replace components as necessary

Physical condition of the collector is good?

Compressed air components checked and in good condition?

Compressed air filters replaced?

Moisture drained following the manufacturer's instructions?

Cleaning valves, solenoid valves, and tubing checked for leaks?

Pressure drop across filters monitored and within normal range?

Report any abnormal changes in pressure drop

WARNING: Use proper safety and protective equipment when removing contaminants and filters. Dirty filters may be heavier than they appear. Use care when removing filters to avoid personal injury.

Open access door by releasing locking mechanism. Swing door fully open. Prevent door from closing unexpectedly by engaging door locking mechanism.

Turn filter retention wing nuts counterclockwise and remove filter retainer. Removal of back row of filter packs first is recommended.

Remove filter by lifting straight up.

Repeat steps 1-4 to remove remaining filter packs.
