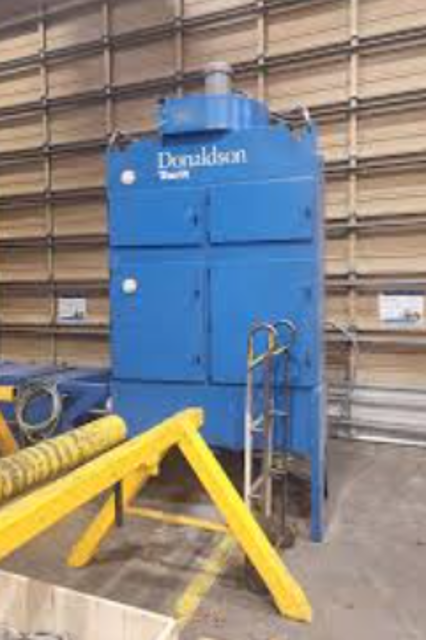

Donaldson Torit Mist Collector WSO 25-2

Physical condition of the collector is good

All components of the collector are functional

Exhaust is functioning properly

Hopper drainage is functioning properly

Pressure drop across after filter

Final filter is in good condition

Do not operate the collector without the first- or primary-stage filter in place. Significant reduction in final filter life can result.

Warning: Do not operate the WSO mist collector without the first-stage filter in place. Significant reduction in primary filter life can result.

First stage filter removed through the lower access door

First-stage screen cleaned by tapping it gently over an appropriate waste container

First-stage screen washed in an appropriate wash tank

First-stage filter cleaned by soaking in an appropriate wash tank

First-stage filter re-installed

Suitable container placed under the P-Trap

P-Trap refilled with suitable fluid

Place a suitable container under the screen cleanout valve

Open the screen clean-out valve

Allow fluid and particulate to drain

With the clean-out valve open, slowly open the P-Trap valve

NOTICE: A substantial amount of fluid may be trapped in the hopper and could exceed the container capacity. Open the P-Trap valve slowly

Unscrew the screen cap and pull the screen out
