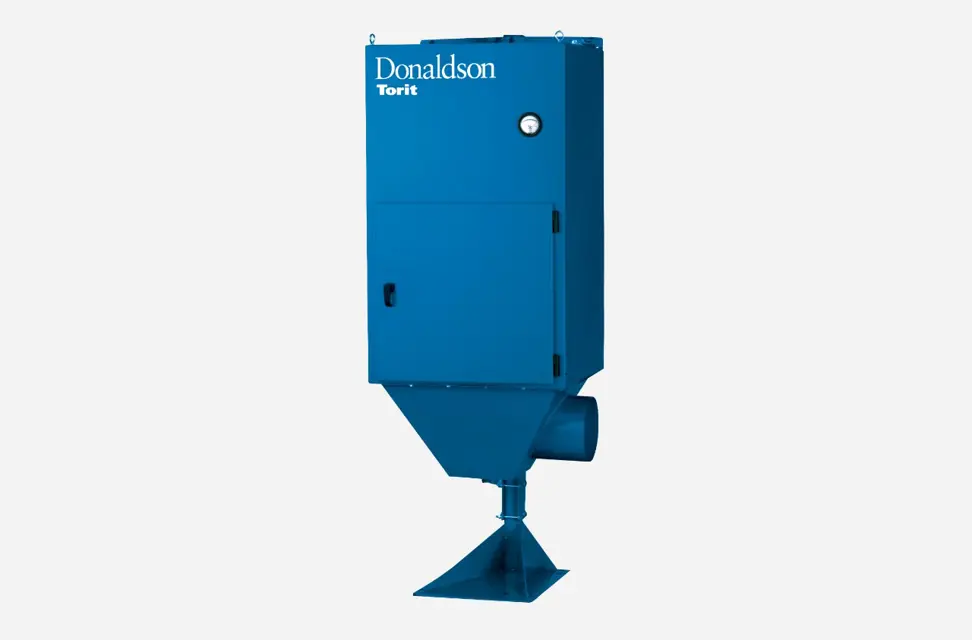

Donaldson Mist Collector WSO 25-1

Warning: This procedure requires trained personnel with proper equipment and safety precautions!

Physical condition of the collector is good

Exhaust is functioning properly

Hopper drainage is functioning properly

Pressure drop across the after filter

First or primary-stage filter is in place

Sign off on the mist collector check

Filter Removal and Installation

Use proper safety and protective equipment when removing contaminants and filters.

Dirty filters may be heavier than they appear.

Use care when removing filters to avoid personal injury and or property damage.

Turn power off and lock out electrical power sources before performing service or maintenance work

Do not operate with missing or damaged filters

First Stage Filter Cleaning and Installation

Remove the first stage filter through the lower access door. Clean the first-stage screen by tapping it gently over an appropriate waste container. If further cleaning is required, wash in an appropriate wash tank. To clean the first-stage filter, soak in an appropriate wash tank, rinse, dry, and re-install.

High temperature steam-cleaning methods should not be used with the polypropylene filters due to the temperature limitations.

1. Place a suitable container under the P-Trap, turn the collector off and remove the pipe plug.

2. Allow fluid and particulate to drain.

3. Use thread sealant and replace pipe plug.

4. Refill the P-Trap with suitable fluid before restarting the collector.

P-Trap with Y-Strainer, Screen Cleaning and Removal

1. Place a suitable container under the screen clean-out valve, turn the collector off, close the P-Trap valve, then open the screen clean-out valve.

2. Allow fluid and particulate to drain.

3. With the clean-out valve open, slowly open the P-Trap valve. This allows fluid still trapped in the hopper to drain.

Warning: Regularly scheduled maintenance is required for the drain collection container.

Is the drain collection container installed?

Is the container removed and cleaned?

Is the faucet cleaned and reinstalled?

Is the faucet closed before turning the collector back on?
