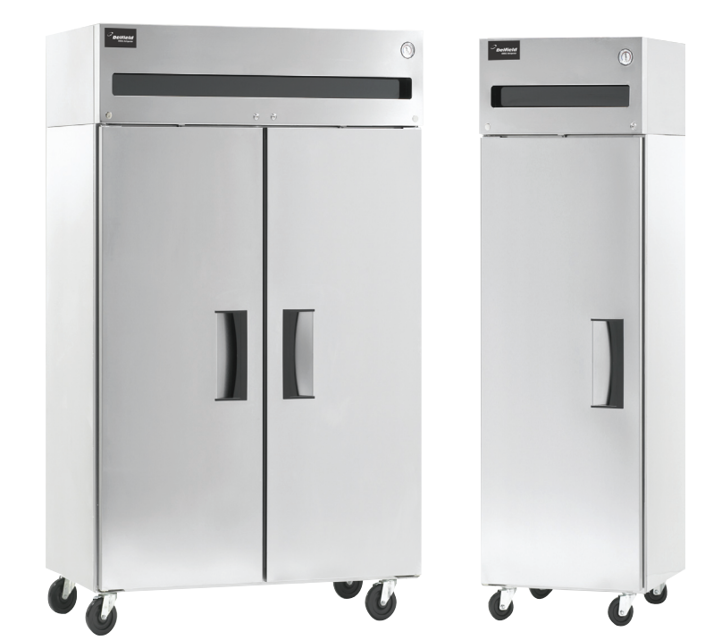

The Delfield Company Refrigeration Equipment 6051XL-GH

Basic Maintenance — Gasket Maintenance

Clean the gasket with warm soapy water

Avoid using full strength cleaning products on the gasket

Ensure no sharp tools or knives are used for cleaning

Check if gasket needs replacement

Replace gasket if necessary by pulling out the old gasket and pressing in the new one

Basic Maintenance — Drain Maintenance

Check for excessive water accumulation inside the unit

Ensure the drain tube is connected from the evaporator housing to the condensate evaporator drain pan

Inspect the condensate evaporator drain tube for proper placement inside the drain pan

Check all drain lines for obstructions

Remove any food product blocking the drain lines

Determine the cleaning method based on the condition of the coil

Is the condenser coil totally blocked?

Use a de-greasing agent if heavy grease is present

Blow through the condenser coil with compressed air after applying de-greasing agent

Is a commercially available condenser cleaner required due to extreme dirtiness?

Ensure no high pressure water wash is used to avoid damage to electrical components

Select the cleaning method based on the coil condition

Ensure no high pressure water is used

Clean the condenser fins of dust, dirt, and grease

Was a commercially available condenser cleaner required?

Verify condenser coil is free of dust, dirt, and grease

Describe any issues encountered during cleaning

Basic Maintenance — Doors/Hinges

Check if the hinge screws are tight.

Tighten the screws on the hinge brackets if necessary.

Is the hinge pulling out of the frame?

Describe any damage to the doors or hinges.

Is qualified service required for repair?
