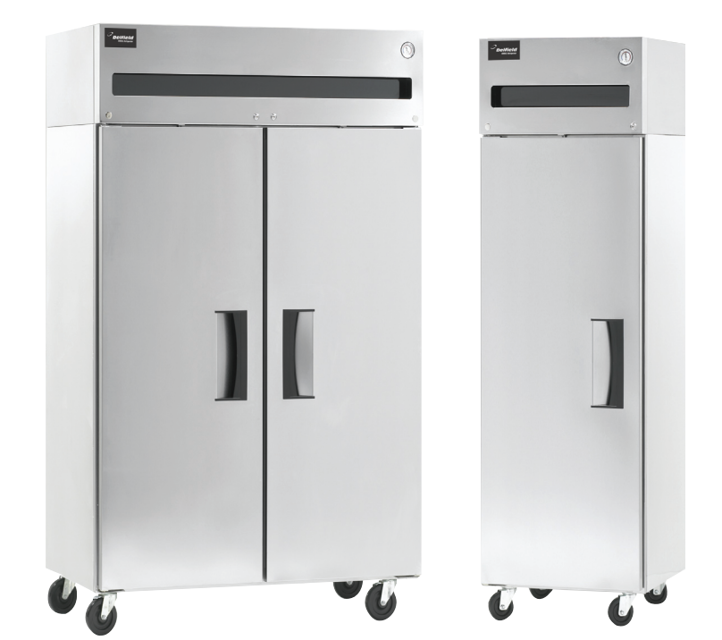

The Delfield Company Refrigeration Equipment 6025XL-GHR

Select the cleaning method used for the condenser coil

Is there heavy grease present on the condenser coil?

Was compressed air used after applying the de-greasing agent?

Is the condenser coil free of debris and dust after cleaning?

Inspect for any damage to electrical components near the condenser coil

Operation — To Set Time of Day (Two & Three Door Models Only)

Grasp the knob of the Paragon 8145 time clock dial in the center of the inner (2 hour) dial and rotate it in a counter-clockwise direction.

Continue turning until the correct time of day on the outer dial lines up with the time pointer.

Was the correct time set on the outer dial?

Was there an interruption of power to the freezer?

Disconnect power supply before servicing.

Ensure no live electrical parts are exposed after removing the top panel or timer cover.

Basic Maintenance — Gasket Maintenance

Clean the gasket with warm soapy water

Avoid using full strength cleaning products on the gasket

Ensure no sharp tools or knives are used for cleaning

Check if the gasket needs replacement

Replace the gasket if necessary by pulling out the old gasket and pressing in the new one

Turn the thermostat to OFF and disconnect the unit from the power source

Clean the interior and exterior surfaces

Rub with the grain of the stainless steel

Stainless Steel Care and Cleaning

Use alkaline based or non-chloride cleaners

Rinse and dry thoroughly after cleaning

Rub with the grain of the steel

Basic Maintenance — Doors/Hinges

Inspect door hinges for looseness or sagging

Tighten screws on hinge brackets if necessary

Check if the door is properly aligned after tightening

Determine if qualified service is needed for further maintenance
