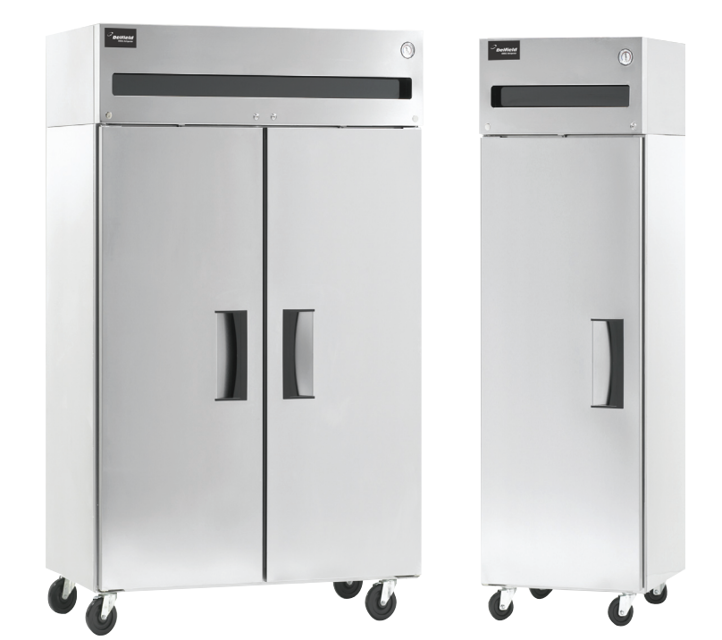

The Delfield Company Refrigeration Equipment 6051XL-SR

Defrost Timer Programming Guide (All Models)

Adjust defrost time for two and three door models

Adjust defrost time for one door models

Adjust cycle time for one door models

Adjust defrost initiation for two and three door models

Consult factory if de-icing is not accomplished

Turn the thermostat to OFF and disconnect the unit from the power source

Clean the interior and exterior using appropriate cleaning solutions

Did you rub with the grain of the stainless steel when cleaning the exterior?

Did you avoid using abrasive cleaners on stainless steel and plastic surfaces?

Stainless Steel Care and Cleaning

Use appropriate cleaning tools for stainless steel

Did you avoid using steel pads, wire brushes, or scrapers?

Did you use alkaline based or non-chloride cleaners?

Basic Maintenance — Drain Maintenance

Inspect drain lines for obstructions

Inspect the condenser coil for debris and dust accumulation

Clean the condenser coil with a brush for light dust and debris

Use a vacuum or compressed air for heavier dust build up

Apply de-greasing agent for heavy grease presence

Blow through the condenser coil with compressed air after applying de-greasing agent

Is a commercially available condenser cleaner required?

Ensure no high pressure water wash is used

Operation — To Set Time of Day (Two & Three Door Models Only)

Grasp the knob of the Paragon 8145 time clock dial in the center of the inner (2 hour) dial and rotate it in a counter-clockwise direction.

Continue turning until the correct time of day on the outer dial lines up with the time pointer.

Was the correct time set on the outer dial?

Was there an interruption of power to the freezer?

Disconnect power supply before servicing.

Ensure no live electrical parts are exposed.
