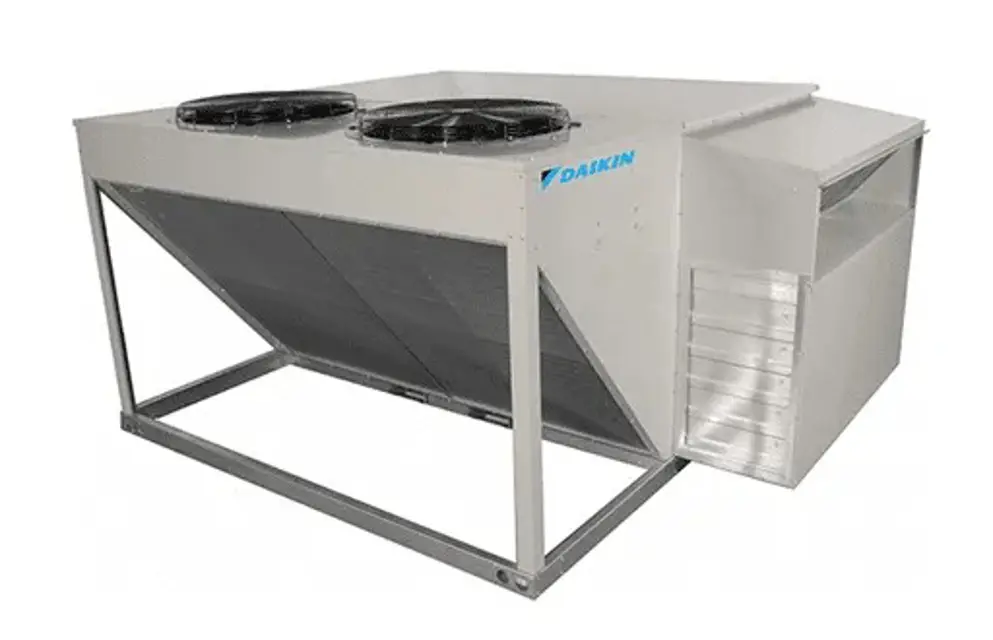

Daikin Packaged Rooftop System DPS004AHMG4PW-4

Check combustion inducer fan for dirt buildup and lint

Check combustion air intake louvers and flue box/vent for accumulation of dirt and debris

Inspect and clean flue tubes and combustion chamber

Keep burner vestibule clean. Dirt and debris can result in poor combustion and lower efficiency

Sign off on the rooftop system maintenance

WARNING: Prior to cleaning the unit, turn off and lock out the main power switch to the unit and open all access panels

The following cleaning procedures are recommended as part of the routine maintenance activities for Option E Coated Coils. Documented routine cleaning of Option E Coated Coils is required to maintain warranty coverage.

Remove Surface Loaded Fibers: Surface loaded fibers or dirt should be removed prior to water rinse to prevent further restriction of airflow.

Is it possible to back wash the side of the coil opposite that of the coils entering air side?

If unable to back wash the side of the coil opposite that of the coils entering air side, then surface loaded fibers or dirt should be removed with a vacuum cleaner. If a vacuum cleaner is not available, a soft non-metallic bristle brush may be used. In either case, the tool should be applied in the direction of the fins. Coil surfaces can be easily damaged (fin edges bent over) if the tool is applied across the fins.

NOTE: Use of a water stream, such as a garden hose, against a surface loaded coil will drive the fibers and dirt into the coil. This will make cleaning efforts more difficult. Surface loaded fibers must be completely removed prior to using low velocity clean water rinse.

Periodic Clean Water Rinse: A monthly clean water rinse is recommended for coils that are applied in coastal or industrial environments to help to remove chlorides, dirt and debris. An elevated water temperature (not to exceed 130°F) will reduce surface tension, increasing the ability to remove chlorides and dirt. Pressure washer PSI must not exceed 900 psig and the nozzle should remain at least 1 foot from the coil to avoid damaging fin edges.

Enter the water temperature used for rinsing

Enter the PSI of the pressure washer used

Check cabinet air filters and replace if dirty

After heavy snowfall verify that combustion air intakes are not blocked by snow

Periodically check during periods of snow accumulation as drifting may also lead to combustion air intake blockage

Open a door on each section and verify that no moisture or debris is accumulating in the unit monthly during preparation for storage

Sign off on the monthly rooftop system maintenance

Clean Option E Coated Coils Surfaces

Quarterly cleaning is essential to extend the life of an Option E Coated Coil and is required to maintain warranty coverage

Coil cleaning shall be part of the unit's regularly scheduled maintenance procedures

Failure to clean an Option E Coated Coil will void the warranty and may result in reduced efficiency and durability in the environment

For routine quarterly cleaning, first clean the coil with the below approved coil cleaner

Coil cleaned with approved cleaner?

After cleaning the coils with the approved cleaning agent, use the approved chloride remover (under the Recommended Chloride Remover section) to remove soluble salts and revitalize the unit

Coil cleaned with approved chloride remover?

Warning: This service requires trained personnel with PPE!

Phase voltage monitor functional?

If phase voltage monitor is not functional, report the issues to the maintenance team and stop the procedure

Are the readings matching the factory defaults?

Issues found during the service
