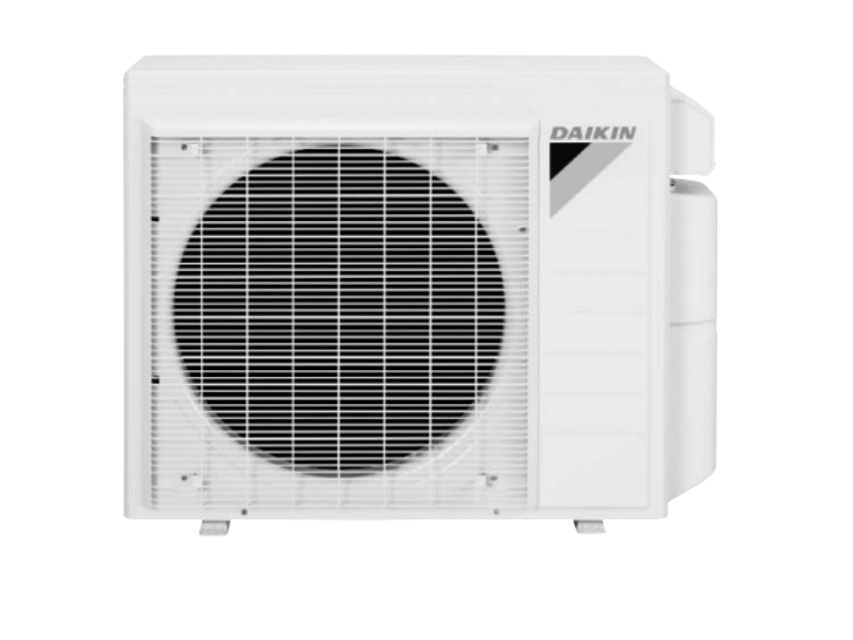

Daikin Outdoor Unit Multi-Split Type Air Conditioner 3MXS24RMVJUA

Warning: This check requires trained personnel with PPE!

Measure the power supply waveform between No. 1 and No. 2 on the terminal board

Is the power supply waveform a sine wave?

Is there waveform disturbance near the zero-cross?

Sign off on the power supply waveform check

Warning: This procedure requires trained personnel with PPE!

Main circuit checked for short circuit?

Warning: Never touch any live parts during the procedure.

Ensure firm contact between the multimeter probes and the test points.

Sign off on the capacitor voltage check

1. Check the connector connection.

2. With the power on, operation off, and the connector connected, check the following.

(1) Output voltage of about 5 V between pins 1 and 3.

(2) Generation of 3 pulses between pins 2 and 3 when the indoor fan motor is operating.

If NG in step (1) -> Defective PCB -> Replace the PCB (control PCB).

If NG in step (2) -> Defective Hall IC -> Replace the indoor fan motor.

If OK in both steps (1) and (2) -> Replace the PCB (control PCB).;

Make sure that the voltage of 320 V is applied.

Set operation off and power off. Disconnect the connector S70.

Check that the voltage between the pins 4 - 7 is 320 VDC.

Check that the control voltage between the pins 4 - 3 is 15 VDC.

Check that the rotation command voltage between the pins 4 - 2 is 0 ~ 15 VDC.

Keep operation off and power off. Connect the connector S70.

Check whether 4 pulses (0 ~ 15 VDC) are input at the pins 4 - 1 when the outdoor fan motor is rotated 1 turn by hand.

When the fuse is melted, check the outdoor fan motor for proper function.

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Thermistors disconnected from the PCB

Measure the resistance of each thermistor using a multimeter

Note: The data is for reference purpose only

Room temperature thermistor removed from the PCB

Measure the resistance of the room temperature thermistor

Indoor heat exchanger thermistor removed

Measure the resistance of the indoor heat exchanger thermistor

Sign off on the thermistor resistance check
