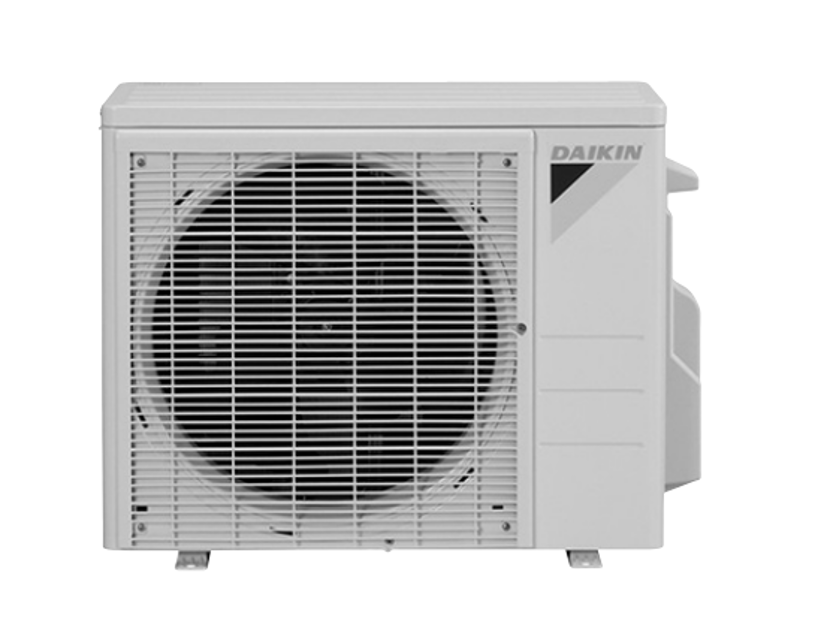

Daikin Outdoor Unit Air Conditioner RXL09WMVJU9

Warning: Ensure the voltage is within 320 VDC before proceeding

Set operation off and power off. Disconnect the connector S70 or S71

Control voltage between the pins 4 - 3

Rotation command voltage between the pins 4 - 2

Keep operation off and power off. Connect the connector S70 or S71

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand

Check the outdoor fan motor for proper function if the fuse is melted

If NG in step 2 or 4, select the defective part

EV connector correctly connected to the PCB

EV generates a latching sound when power is turned off and on again

Continuity confirmed when connector is disconnected and checked with a multimeter

Check the continuity between the pins

EV coil is not faulty if there is continuity between the pins

Outdoor unit PCB (main PCB) is faulty if continuity is confirmed

Sign off on the electronic expansion valve check

Warning: Ensure the voltage between (+) and (-) of the diode bridge (DB1) is about 0 V before proceeding

Enter the voltage between (+) and (-) of the diode bridge (DB1)

If the voltage is not about 0 V, stop the procedure and report the issue

Enter the resistance between the pins of the DB1

Is the resistance between the pins of the DB1 either infinity or less than 1 kΩ?

If the resistance is either infinity or less than 1 kΩ, a short circuit occurs on the main circuit

Sign off on the main circuit short check

Warning: This procedure requires trained personnel with PPE!

Disconnect the connector of thermistor ASSY from the PCB to measure the resistance between the pins using multimeter.

Enter the measured resistance value

Does the measured resistance value match the listed value?

To check the thermistor soldered on a PCB, disconnect the PCB from other PCB/parts, and measure the resistance between the both ends of soldered thermistor.

Enter the measured resistance value

Does the measured resistance value match the listed value?

Note: When replacing the defective thermistor(s), replace the thermistor as ASSY.

Sign off on the thermistor resistance check

Warning: Ensure the voltage between (+) and (–) of the power module is about 0 V before proceeding

Enter the voltage between (+) and (–) of the power module

Disconnect the compressor harness connector from the outdoor unit PCB. To disengage the connector, press the protrusion on the connector.

Was the compressor harness connector successfully disconnected?

Measure resistance between the terminals of the power module and the terminals of the compressor with a multimeter.

Enter the resistance measurement

Evaluate the measurement results

Sign off on the power module check
